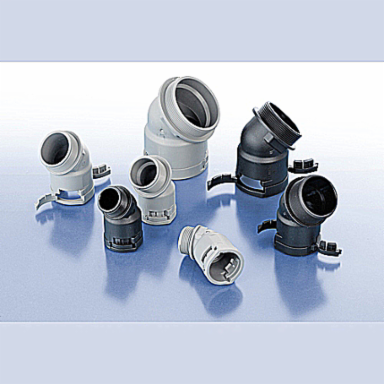

PMA ALAD-M162 Elbows-45 Degree
- MPN: ALAD-M162
- UPC: 786209942852
- PPN: T-B-ALAD-M162
CAD
$6.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

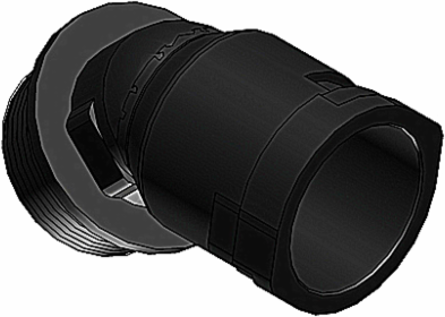

Smart Line 45 Degree Black One-Piece Elbow with Integral Cone Seal, Material-Polyamide 6, Conduit Size NW12, Thread Size - M16x1.5
Features
- Economical
- Easy push-in installation
- Easy re-opening with screwdriver
- Space savings due to compact design
- Self-extinguishing, free of halogens and cadmium
- Excellent impact strength
- Fits both conduit profiles - fine (T) and coarse (G)
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP66
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- M16 x 1.5
- Thread length
- 11mm
- Total height
- 39.5mm
- Material sealing
- No sealing
- Approved in combination with protective conduit CSA
- N
- Approved in combination with protective conduit DIN EN 61386-23
- N
- Operating temperature
- -45 - +105°C
Nominal diameter16mm
Model45°-elbow
Construction typeInternal thread
Thread typeMetric
Thread materialPolyamide
Total length47.5mm
MaterialPolyamide
ColourBlack
Approved in combination with protective conduit URN
Approved in combination with protective conduit Lloyd's RegisterN
Packaging
- Inner Quantity
- 100
- Outer Dimensions (inches)
- 15.748x11.811x7.874
Outer Quantity700
Weight Uom0.02 lbs. Each
North American Specifications (UNSPSC)
- UNSPSC
- 39121420 Liquid tight connectors
- Brand Name
- PMA
- Application
- Machine Building, Installation and Construction Industries
- Connection
- M16x1.5
- Color
- Black
IGCC4585 Liquid tight connectors
TypeElbows-45 Degree
SizeNW12
MaterialPolyamide 6
