PMA SLND-M160 Connectors-Straight
- MPN: SLND-M160
- UPC: 786209970916
- PPN: T-B-SLND-M160
CAD
$2.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

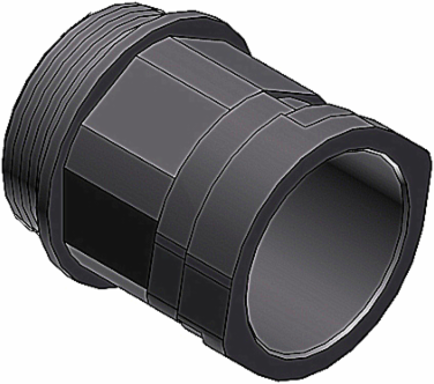

Smart Line Straight Grey Connector with Integral Cone Seal, Material Polyamide 6, Conduit Size NW10, Thread Size - M16x1.5
Features
- Easy push-in installation
- Easy re-opening with screwdriver
- Space savings due to compact design
- Self-extinguishing, free of halogens and cadmium
- Excellent impact strength
- Fits both conduit profiles - fine (T) and coarse (G)
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP66
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- M16 x 1.5
- Thread length
- 11mm
- Material
- Polyamide
- Colour
- Grey
- Approved in combination with protective conduit UR
- N
- Approved in combination with protective conduit Lloyd's Register
- N
Nominal diameter12mm
ModelStraight
Construction typeInternal thread
Thread typeMetric
Thread materialPolyamide
Total length34mm
Material sealingNo sealing
Approved in combination with protective conduit CSAN
Approved in combination with protective conduit DIN EN 61386-23N
Operating temperature-45 - +105°C
Packaging
- Inner Quantity
- 100
- Outer Dimensions (inches)
- 15.748x11.811x8.661
Outer Quantity1000
Weight Uom0.01 lbs. Each
North American Specifications (UNSPSC)
- UNSPSC
- 39121420 Liquid tight connectors
- Brand Name
- PMA
- Size
- NW10
- Material
- Polyamide 6
IGCC4585 Liquid tight connectors
TypeConnectors-Straight
ConnectionM16x1.5
ColorGray
