PMA PHTG-29B.50 Heavy Duty Conduit
- MPN: PHTG-29B.50
- UPC: 078620996768
- PPN: T-B-PHTG-29B.50
CAD
$1370.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

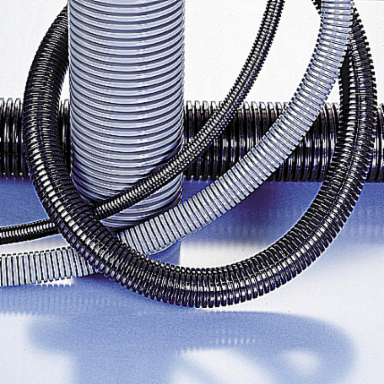

Coarse Proile Highly Flexible Heavy-Wall Black Conduit, (PHT) Material - Polyamide Elastomer, Conduit Size NW - 29, 50 Meters
Features
- Excellent resistance to ultra violet (UV) rays and atmospheric corrosion
- Both excellent flexibility and high compression strength
- Extremely good impact resistance at very low temperatures
- Enhanced temperature range when compared to standard polyamides
- Free from halogens and cadmium
- Robotic
- For applications at high and very low temperatures
Specifications
European Specifications (ETIM)
| ETIM | EC001175 Corrugated plastic hose |
|---|---|
| Outer diameter | 34.5mm |
| Material | Other |
| Fire resistance in accordance with UL94 | HB |
| Colour | Black |
| Bending strength | Flexible |
| Closable (two-part) | N |
| Approved according to DIN EN 61386-23 | N |
| Approved according to CSA | N |
| Approved according to Lloyd's Register TA | N |
| Approved according to DIN 5510 | N |
| Nominal diameter | 32mm |
|---|---|
| Inner diameter | 27.7mm |
| Operating temperature | -50 - +135°C |
| UV resistant | Y |
| Sheathing material | Not sheathed |
| Lengthwise slotted | N |
| Halogen free | Y |
| Approved according to UR | N |
| Approved according to LUL/British Standard | N |
| Approved according to UTAC | N |
| Approved according to NF F 16-101 | N |
North American Specifications (UNSPSC)
| UNSPSC | 39131706 Electrical conduit |
|---|---|
| Brand Name | PMA |
| Application | Machine |
| Outside Diameter | 1.36 Inch |
| Flexibility | Highly Flexible |
| Color | Black |
| IGCC | 5535 Electrical conduit |
|---|---|
| Type | Heavy Duty Conduit |
| Trade Size | NW29 |
| Length | 50 m |
| Material | Polyamide Elastomer |
Packaging
| Inner Quantity | 1 |
|---|---|
| Outer Dimensions (inches) | 47.244x31.496x29.528 |
| Outer Quantity | 6 |
|---|---|
| Weight Uom | 0.09 lbs. Each |
