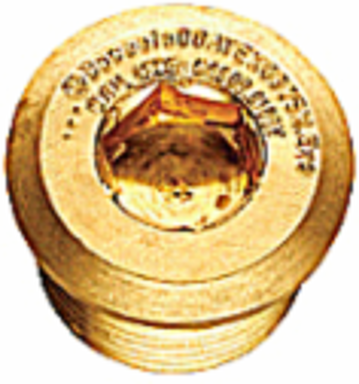

Kopex-ex EXS/M16/DSP Conduit Stopping Plug with Dome Head
- MPN: EXS/M16/DSP
- UPC: 786210195797
- PPN: T-B-EXS/M16/DSP
CAD
$93.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Stopping Plug with Dome Head, M16 Thread, Suitable for Use in Zones 1, 2 , 21, and 22, Exd I, Exd IIC, and Extd IIIC, IP65-66 Rating, Stainless Steel
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121404 Electrical sleeves |
|---|---|
| Brand Name | Kopex |
| Application | Provide Protection for the End of Conduit Systems |
| Insulation | IP65, 66 |
| Color | Metallic |
| Size | M16 Thread |
| IGCC | 4529 Cable end sleeve |
|---|---|
| Type | Conduit Stopping Plug with Dome Head |
| Standard | ATEX :- Baseefa 08ATEX0324, IECEx :- IECEx BAS08.0109 |
| Material | Stainless Steel |
| Connection | Straight, Screw In |
European Specifications (ETIM)
| ETIM | EC000032 Plug for cable screw gland |
|---|---|
| Nominal thread size metric/PG | 16 |
| Material quality | Stainless steel V4A |
| Colour | Natural colour |
| For Ex-Zone dust | 21, 22 |
| Thread type | Metric |
|---|---|
| Material | Metal |
| Surface protection | Untreated |
| For Ex-zone gas | 1, 2 |
Packaging
| Outer Quantity | 10 |
|---|---|
| Weight Uom | 0.14 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
