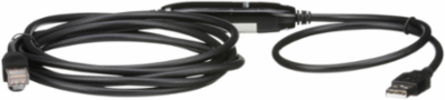

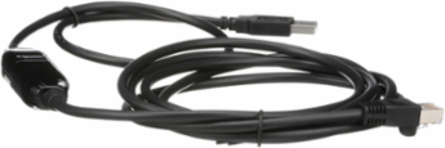

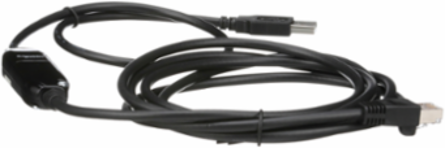

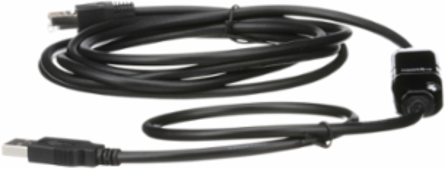

Schneider Electric TCSMCNAM3M002P USB/RJ45 Connection Cable for PC and Drive Communication
- MPN: TCSMCNAM3M002P
- PPN: SCH-TCSMCNAM3M002P
CAD
$51.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Altivar ATV312 variable frequency drives (VFD) provide a compact, cost effective adjustable speed control for asynchronous motors from 0.25 to 20 HP. It is compatible with Altivar Machine ATV320, Altivar 12, Altivar 312 Solar, Lexium 32i, Lexium ILA, ILE, ILS, Acti 9 Smartlink, Lexium 28, SoMove and Altivar Machine ATV340 products. It enables direct connection of a computer to a drive, avoiding difficult-to-find adapters.
Features
- Specifically engineered as a logic link between a USB port and an RJ45 port, this 2.5-meter connection cable provides a seamless interface for Altivar variable speed drives, Lexium servo drives, and Modicon controllers. This dedicated hardware link eliminates the communication errors and "device not found" frustrations commonly associated with generic, non-shielded USB-to-Serial adapters during critical programming sessions.
- This cable is the primary hardware bridge for Schneider s SoMove and Unity Pro software suites, allowing industrial technicians to perform real-time diagnostics, parameter backups, and firmware updates. By enabling a stable, high-speed data transfer, it streamlines the commissioning process of complex motor control systems, significantly reducing the labor hours required for setup and system tuning.
- Built with professional-grade electromagnetic shielding, the TCSMCNAM3M002P is designed to maintain signal integrity even when used near high-voltage motor cables and noisy industrial machinery. This robust construction prevents data corruption and sudden disconnections during live monitoring, ensuring your drive configuration is uploaded safely without the risk of bricking sensitive electronic components.
- Featuring an integrated converter chip, this cable is automatically recognized by most Windows-based industrial workstations, allowing for immediate "out-of-the-box" connectivity. The durable, over-molded RJ45 and USB connectors are built to withstand frequent plugging and unplugging in the field, making it a "must-have" diagnostic tool for any automation engineer s service kit.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Singapore, United States
Important Information Attributes
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Weee Applicability
- Component
- Weee Exclusion Rationale
- Product/component not in scope – not electric/electronic device
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Persona Type Ids
- EU
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Device Connection
- between PC and drive
- Product Or Component Type
- standard cable
- Sustainable Packaging
- No
- Accessory / Separate Part Type
- cordset
- Package Weight(Lbs)
- 175.000 g
- Warranty (In Months)
- 18
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeVariable speed drive - VSD option & accessory
TraceabilityNo
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1929
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Persona Type NamesEnd User
Tier1
Function OptionStandard
Market SegmentationIndustrial
Connector TypeUSB/RJ45
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Accessory / Separate Part Categoryconnection accessories
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8544422000
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Reach Free ShvcYes
China Rohs RegulationX
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- standard cable
ETIM
- ETIM 8
- EC000237
ETIM 9EC000237
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
