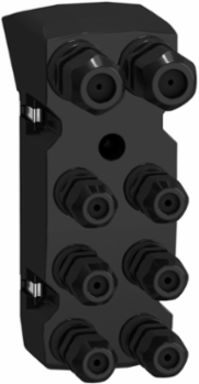

Schneider Electric VW3M9105 Connector module, Lexium 32i, connection with terminals, CANopen, 4DI sink/source, 2DO, STO

Connector module, Lexium 32i, connection with terminals, CANopen, 4DI sink/source, 2DO, STO
  • MPN: VW3M9105
  • PPN: SCH-VW3M9105

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$276.98/ EA

Description

Connector module, Lexium 32i, connection with terminals, CANopen, 4DI sink/source, 2DO, STO

Specifications

Complementary

Discrete Input Logic
sink || source
Product Compatibility
drive control unit LXM32i CANopen
Net Weight
0.236 kg
Accessory / Separate Part Destination
motor BMI with drive control unit Lexium 32i
Safety FunctionSTO (safe torque off)
Range CompatibilityLexium 32i
Input/Output Type4 discrete inputs + 2 discrete outputs
Communication InterfaceCANmotion || CANopen DS402

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1312017EN
Pvc Free
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1312017EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Specifications

Range Of Product
Lexium 32i
Electrical Connection
printed circuit board connector
Accessory / Separate Part Categoryconnection accessories
Product Or Component Typeconnector module

Contractual warranty

Warranty
18 months
