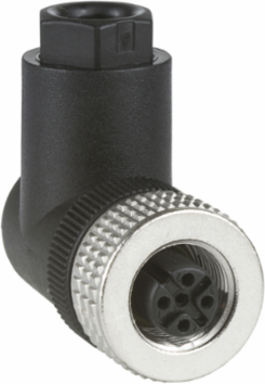

Telemecanique Sensors XZCC12FCM40B Female, M12, 4 pin, elbowed connector, cable gland Pg 7
- MPN: XZCC12FCM40B
- PPN: TES-XZCC12FCM40B
- UNSPSC: 39122230
CAD
$25.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This connector has a elbowed female 4-pin M12 connector and a screw terminal with metal clamping rings. It is designed for critical installations thanks to the high robustness metallic ring M12 connector.
Documentation & Downloads
Specifications
Key Specifications
| Collar Material | metal |
|---|---|
| Range Of Product | Telemecanique Cabling components |
| Status Led | without |
| Cable Connection | screw terminal 0.75 mm² 3-6 mm |
| Electrical Connection | elbowed female connector M12, 4 pins |
|---|---|
| Accessory / Separate Part Category | cabling accessories |
| Accessory / Separate Part Type | connector |
Complementary
| Minimum Insulating Resistance | 1000 GΩ |
|---|---|
| Cable Connector Fixing | screw-on |
| [In] Rated Current | 3 A |
| Net Weight | 0.02 kg |
| [Ue] Rated Operational Voltage | 125 V AC || 150 V DC |
|---|---|
| Cable Gland Type | Pg 7 |
| Enclosure Material | plastic |
| Contact Resistance | 8000 µOhm |
Environment
| Ambient Air Temperature For Operation | -40-85 °C |
|---|
| Ip Degree Of Protection | IP67 |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
