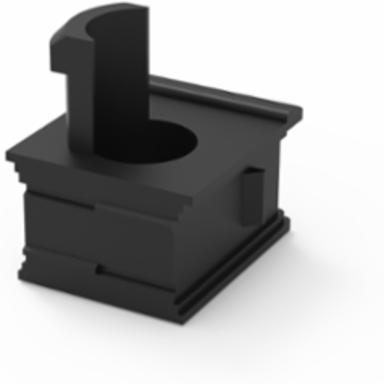

nVent Hoffman CCG05 Cable Entry Grommet, 5 Inch Diameter, IP54 Protection, Thermoplastic Rubber, Black
- MPN: CCG05
- UPC: 783510456375
- PPN: HOF-CCG05
CAD
$93.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Open cable grommets can be used for installing cables that are already fitted with connectors. This Cable Entry Grommet, CCG, CCG05 item has a material of Thermoplastic rubber color Black, finish Smooth.
Features
- Mounted together with the CCF cable gland plate, CCG grommets are used to easily route cables fitted with connectors
- The grommet is positioned around the cable and is equipped with catch hooks that anchor themselves in the CCF cable gland plate
- Strain relief is achieved by using a simple cable tie
- Temperature resistance: -40ºC to +80ºC
- Flammability: HB according to UL94
- Pack quantity: 10 pieces
- Open cable grommets allow for a wide range of cables sizes to be installed
- The cable entry frame can be made up of different open grommets to match customer requirements
- Open cable grommets can be installed onto cables that are already fitted with connectors before they are installed into the cable entry frame
- The cable grommets can be changed if required
- The cable grommets, CCG, are to be used with the gland plate entry accessory, CCF
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Finish
- Smooth
- Color Code
- RAL 9005
- Works With
- NEMA
Protection RatingIP54
ColorBlack
Cable Diameter Range5
