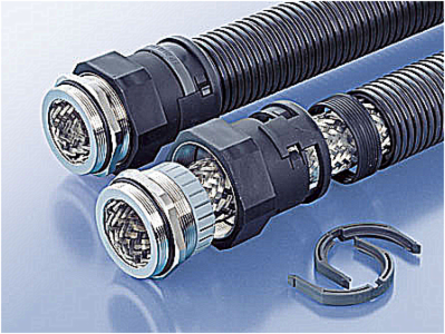

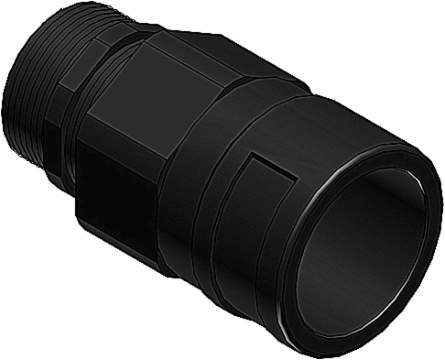

PMA NVEZ-M207V/P3 Connectors-Straight
PMA NVEZ-M207V/P3 Connectors-Straight
- MPN: NVEZ-M207V/P3
- UPC: 786209963345
- PPN: T-B-NVEZ-M207V/P3
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$93.47/ EA
Description
EMC Connector, Metric Thread - Thread Size M20x1.5, Conduit Size NW 17, Clamping Range 6.5-9.5, Color Black
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP68
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- M20 x 1.5
- Thread length
- 6.5mm
- Material
- Polyamide
- Colour
- Black
- Approved in combination with protective conduit UR
- N
- Approved in combination with protective conduit Lloyd's Register
- N
Nominal diameter20mm
ModelStraight
Construction typeInternal thread
Thread typeMetric
Thread materialBrass
Total length60mm
Material sealingTPE
Approved in combination with protective conduit CSAN
Approved in combination with protective conduit DIN EN 61386-23N
Operating temperature-40 - +105°C
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- PMA
- Application
- EMC Sensetive Applications in Railway
- Material
- Polyamide 6 with Nickel Plated Brass Threads
- Color
- Black
- Temperature Rating
- -40 Degrees C to 105 Degrees C; Short Term 160 Degrees C
IGCC4441 Electrical fittings
TypeConnectors-Straight
SizeNW17
Insulation ClassIP68
ConnectionM20
Packaging
- Inner Quantity
- 50
- Outer Dimensions (inches)
- 15.748x11.811x7.874
Outer Quantity200
Weight Uom0.1 lbs. Each
