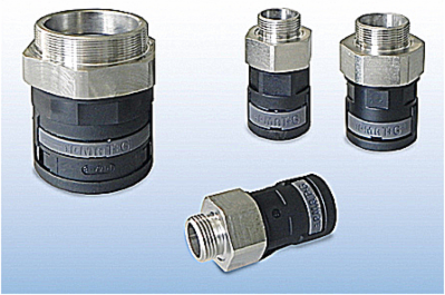

PMA NSNV-M162-10 Connectors-Straight

MPN: NSNV-M162-10
UPC: 786209932648
PPN: T-B-NSNV-M162-10

$408.75

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Swivel Connector, Straight, Metric Metal Thread IP68 - Conduit Size NW 12, Thread Size M16x1.5, Polyamide 6 with Nickel Plated Brass Threads, Color Black

Specifications

European Specifications (ETIM)

ETIM	EC001176 Screw connection for corrugated plastic hose
Degree of protection (IP)	IP68
Revolving thread	Y
Type of connection	Snap connection
Thread connection size	M16 x 1.5
Thread length	10mm
Total height	25mm
Material sealing	No sealing
Approved in combination with protective conduit CSA	N
Approved in combination with protective conduit DIN EN 61386-23	N
Operating temperature	-40 - +105°C

Nominal diameter	16mm
Model	Straight
Construction type	External thread
Thread type	Metric
Thread material	Brass
Total length	53.5mm
Material	Polyamide
Colour	Black
Approved in combination with protective conduit UR	N
Approved in combination with protective conduit Lloyd's Register	N

North American Specifications (UNSPSC)

UNSPSC	39121311 Electrical fittings
Brand Name	PMA
Application	For Cable Protection Systems In a Wide Range of Applications
Material	Polyamide 6 with Nickel Plated Brass Threads
Color	Black
