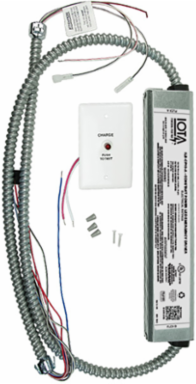

Acuity Brands ILB CP10 A M5 Constant Power LED Emergency Driver, Constant Power 10W output, Dual Flexible Metal Conduit
- MPN: ILB CP10 A M5
- UPC: 402324203820
- PPN: LTH-ILB CP10 A M5
- UNSPSC: 26111710
CAD
$259.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The IOTA ILB CP10 is a UL-listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operations. In the event of a power failure, the ILB CP10 switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single can and is available in different mounting configurations for individual fixture requirements.
Features
- The IOTA ILB CP10 is a UL-listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operations. In the event of a power failure, the ILB CP10 switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single can and is available in different mounting configurations for individual fixture requirements.
- TECHNOLOGY: The ILB CP10 will operate an LED array load at 10 watts with constant power at a rated output voltage of 10V-60V
- ENERGY SAVINGS: The ILB CP10 switches to the emergency mode and operates the existing fixture for 90 minutes
- DIMMING: The unit contains a battery, charger, and converter circuit in a single can and is available in different mounting configurations for individual fixture requirements
- RATINGS: UL Listed for factory and field installation, CSA C22.2 No 141
- VOLTAGE: (Universal) 120-277VAC, 50/60Hz
- HOURS OF LIFE: Emergency operation of 90 minutes
- INSTALLATION: Constant wattage delivery maintains illumination for the full emergency runtime with no degradation
- BATTERY: Long life high temperature recyclable Ni-Cad battery
- WARRANTY: 5-Year Warranty
Documentation & Downloads
Specifications
Key Specifications
| Product Type | Emergency LED Driver |
|---|---|
| Standard | cUL,NFPA 101 |
| Mounting | Fixture Attached,Remote Mount,Unit to J Box |
| Maximum Operating Temperature | 55 |
| Height | 2.5 in |
| Weight | 4.165 lbs |
| Country of Origin | Mexico |
| Application | Education,Enclosed & Gasketed,Government,Healthcare,Hospitality,House of Worship,Manufacturing,Offices & Banks,Retail,Retrofit,Warehouses |
|---|---|
| Voltage Rating | 120-277 |
| Environmental Conditions | Indoor |
| Warranty | 5 Year Limited |
| Length | 22 in |
| Width | 9 in |
