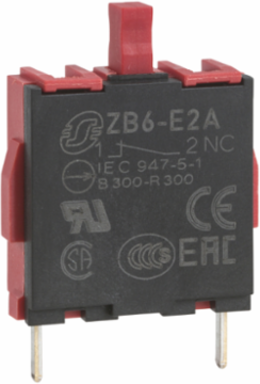

Schneider Electric ZB6E2A Harmony XB6 Single Contact Block 16mm, Silver Alloy, 1 NC
Schneider Electric ZB6E2A Harmony XB6 Single Contact Block 16mm, Silver Alloy, 1 NC
- MPN: ZB6E2A
- PPN: SCH-ZB6E2A
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$9.23/ EA
Description
This Harmony ZB6E2A is a single contact block for head, 1 NC with pins for PCB. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Specifications
Environment
- Product Certifications
- CCC || CSA || UL || GOST
- Standards
- UL 508 || JIS C 4520 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C 852
- Vibration Resistance
- +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP20 IEC 60529
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
Complementary
- Terminals Description Iso N°1
- (1-2)NC
- Operating Force
- 2.5 N NC changing electrical state
- Positive Opening
- with EN/IEC 60947-5-1 appendix K
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V 3)EN/IEC 60947-1
- Mechanical Durability
- 5000000 cycles
Short-Circuit Protection6 A cartridge fuse gG
Operating Travel1 mm NC changing electrical state) || 3.5 mm total travel)
Net Weight0.004 kg
Electrical Durability1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
[Ie] Rated Operational Current3 A 120 V, AC-15, B300 || 1.5 A 240 V, AC-15, B300 || 0.1 A 250 V, DC-13, R300 || 0.22 A 125 V, DC-13, R300
Electrical Reliabilityλ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN/IEC 60947-5-4
Specifications
- Range Of Product
- Harmony XB6
- Contact Block Type
- single
- Connections - Terminals
- pins for printed circuit board
- Sale Per Indivisible Quantity
- 10
- Device Short Name
- ZB6
Contacts Materialsilver alloy (Ag/Ni)
Product Or Component Typecontact block
Contacts Type And Composition1 NC
Contact Operationslow-break
