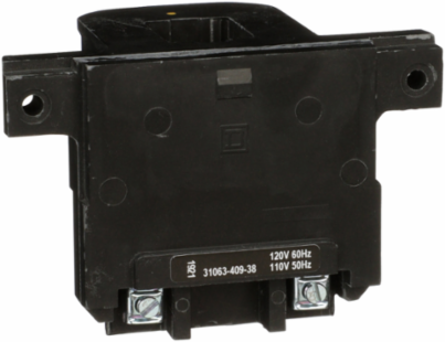

Square D 3106340938 NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA Size 2 starter and 8903SP lighting

NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA Size 2 starter and 8903SP lighting - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/fe36bb9239098aaefa9d5071d62eb08a28f2f771-medium.png

NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA Size 2 starter and 8903SP lighting - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/35e699f64f50743e21c378b863f27160aaaa1920-medium.png

NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA Size 2 starter and 8903SP lighting - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/732d17eec3990d3e212e69ddc72ff08e9afe8227-medium.png

NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA Size 2 starter and 8903SP lighting - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/92611a3da4c1d3e827ad6b7c232585f3d34fc898-medium.png

NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA Size 2 starter and 8903SP lighting

NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA Size 2 starter and 8903SP lighting

NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA Size 2 starter and 8903SP lighting

NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA Size 2 starter and 8903SP lighting

NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA Size 2 starter and 8903SP lighting

Square D 3106340938 NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA Size 2 starter and 8903SP lighting

MPN: 3106340938
UPC: 785901484882
PPN: SCH-3106340938

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$373.12/ EA

Loading add to cart quantity...

Description

The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SD contactor, an 8536SD starter or an 8903SP lighting contactor. This coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 311 VA. It has an average sealed consumption of 37 VA. This coil has a height of 66.2 mm, a width of 101.1 mm and a depth of 61.7 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.

Specifications

Complementary

Average Consumption: 36 VA || 37 VA

Height: 66.2 mm

Inrush Power In Va: 296 VA || 311 VA

Depth: 61.7 mm

[Ue] Rated Operational Voltage120 V AC 60 Hz || 110 V AC 50 Hz

Nema Size2

Width101.1 mm

Offer Sustainability

Eu Rohs Directive: Not applicable, out of EU RoHS legal scope

Specifications

Accessory / Separate Part Destination: class 8502 type SD contactor || class 8903 type SP lighting contactor

Product Or Component Typecoil
