Schneider Electric LP4K09015BW3 TeSys K Contactor, 3 Poles, 9A, 24V DC Coil, 440V
Schneider Electric LP4K09015BW3 TeSys K Contactor, 3 Poles, 9A, 24V DC Coil, 440V
- MPN: LP4K09015BW3
- PPN: SCH-LP4K09015BW3
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$128.65/ EA
Description

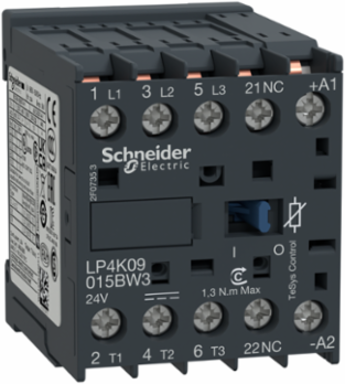

TeSys K contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NC built-in auxiliary contact, connection by solder pins for printed circuit boards. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Product Certifications
- CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4
- Ambient Air Temperature For Storage
- -50-80 °C
- Operating Altitude
- 2000 m without derating
Ambient Air Temperature For Operation-25-50 °C
Flame RetardanceV1 UL 94 || requirement 2 NF F 16-101 || requirement 2 NF F 16-102
Ip Degree Of ProtectionIP2X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1503003EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1503003EN
Complementary
- Minimum Switching Current
- 5 mA for signalling circuit
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC <= 400 Hz || signalling circuit <= 690 V AC <= 400 Hz
- Average Impedance
- 3 mOhm - Ith 20 A 50 Hz for power circuit
- Control Circuit Voltage Limits
- operational: 0.7...1.3 Uc (at <50 °C) || drop-out: >= 0.10 Uc (at <50 °C)
- Mounting Support
- printed circuit boards
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Insulation Resistance
- > 10 MOhm for signalling circuit
- Irms Rated Making Capacity
- 110 A AC for power circuit conforming to IEC 60947 || 110 A AC for signalling circuit conforming to IEC 60947
- Associated Fuse Rating
- 25 A gG at <= 440 V for power circuit || 25 A aM for power circuit || 10 A gG for signalling circuit conforming to IEC 60947 || 10 A gG for signalling circuit conforming to VDE 0660
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Pole Contact Composition
- 3 NO
- Utilisation Category
- AC-3 || AC-3e || AC-1 || AC-4
- Minimum Switching Voltage
- 17 V for signalling circuit
- Electrical Durability
- 1.3 Mcycles 9 A AC-3 <= 440 V || 1.3 Mcycles 9 A AC-3e <= 440 V || 0.16 Mcycles 20 A AC-1 <= 690 V || 0.02 Mcycles 54 A AC-4 <= 440 V
- Mechanical Durability
- 30 Mcycles
- Poles Description
- 3P

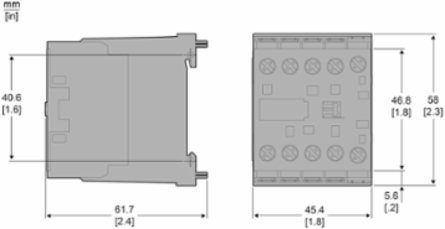

- Width
- 45 mm
- Depth
- 57 mm
- [Icw] Rated Short-Time Withstand Current
- 90 A 50 °C - 1 s for power circuit || 85 A 50 °C - 5 s for power circuit || 80 A 50 °C - 10 s for power circuit || 60 A 50 °C - 30 s for power circuit || 45 A 50 °C - 1 min for power circuit || 40 A 50 °C - 3 min for power circuit || 20 A 50 °C - >= 15 min for power circuit || 80 A - 1 s for signalling circuit || 90 A - 500 ms for signalling circuit || 110 A - 100 ms for signalling circuit
[Uc] Control Circuit Voltage24 V DC
Height58 mm
Auxiliary Contact Composition1 NC
[Ith] Conventional Free Air Thermal Current20 A (at 60 °C) for power circuit || 10 A (at 50 °C) for signalling circuit
Control Circuit TypeDC wide range
Hold-In Power Consumption In W1.8-1.8 W 20 °C
Rated Breaking Capacity110 A at 220...230 V conforming to IEC 60947 || 110 A at 380...400 V conforming to IEC 60947 || 110 A at 415 V conforming to IEC 60947 || 110 A at 440 V conforming to IEC 60947 || 80 A at 500 V conforming to IEC 60947 || 70 A at 660...690 V conforming to IEC 60947
Motor Power Kw2.2 kW 220...230 V AC 50/60 Hz AC-3 || 4 kW 380...415 V AC 50/60 Hz AC-3 || 4 kW 440/690 V AC 50/60 Hz AC-3 || 2.2 kW 220...230 V AC 50/60 Hz AC-3e || 4 kW 380...415 V AC 50/60 Hz AC-3e || 4 kW 440/690 V AC 50/60 Hz AC-3e || 2.2 kW 220...230 V AC 50/60 Hz AC-4 || 4 kW 380...415 V AC 50/60 Hz AC-4 || 4 kW 440/690 V AC 50/60 Hz AC-4
Net Weight0.235 kg
Connections - Terminalssolder pins 0.035 mm)
Coil Technologybuilt-in bidirectional peak limiting diode suppressor
[Ie] Rated Operational Current9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit || 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit
Maximum Operating Rate3600 cyc/h
Inrush Power In W1.8-1.8 W 20 °C)
Auxiliary Contacts Typeinstantaneous 1 NC
Operating Time10...20 ms coil de-energisation and NO opening || 30...40 ms coil energisation and NO closing
Overvoltage CategoryIII
[Ui] Rated Insulation Voltagepower circuit 600 V UL 508 || power circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-5-1 || signalling circuit 600 V UL 508 || power circuit 600 V CSA C22.2 No 14 || signalling circuit 600 V CSA C22.2 No 14
Heat Dissipation1.8-1.8 W
Specifications
- Contactor Application
- resistive load || motor control
- Range
- TeSys
Product Or Component Typecontactor
