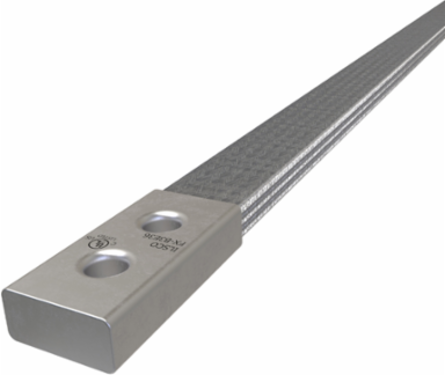

ILSCO FX-B3E36 Copper Flex Braid Connector, Conductor Equivalent Size 462, 3 Braids, 36in, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Tin Plated, UL/cUL
- MPN: FX-B3E36
- UPC: 783669016741
- PPN: ILC-FX-B3E36
CAD
$425.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Flex Braid Connector, Conductor Equivalent Size 462, 3 Braids, 36in, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Tin Plated, UL/cUL
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.58 in |
|---|---|
| Weight | 6.18640523235542 lbs |
| Length | 36 in |
|---|---|
| Width | 1.25 in |
Dimensions
| Dimension G (IN) | 0.75 |
|---|---|
| Height BX (IN) | 4 |
| Length of Ferrule (mm) | 63.5 |
| Mounting Hole Diameter (IN) | 0.41 |
| Mounting Hole Spacing (IN) | 1 |
| Weight BX (LB) | 8.784 |
| Dimension G (mm) | 19.05 |
|---|---|
| Length of Ferrule (IN) | 2.5 |
| Mounting Bolt/Stud Size (mm) | 965.2 |
| Mounting Hole Diameter (mm) | 10.414 |
| Mounting Hole Spacing (mm) | 25.4 |
| Width BX (IN) | 4 |
Testing Standards
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
|---|---|
| UL / CULUS Specification | UL/cUL 467 Listed |
| UL Control Number | 667P |
|---|---|
| UL File Number | E34440 |
Additional Class Attributes
| Circular Mils/Braid | 504000 |
|---|---|
| Number of Braids | 3 |
| Shape Of Conductor | Flat |
| Mounting Hole Type | Thru |
|---|---|
| Number of Mounting Holes | 2 |
Material and Finish
| Conductor Material | Copper |
|---|---|
| Material | Copper |
| Connector Finish | Tin |
|---|
Conductor Ranges
| Wire Equivalent | 462 kcmil |
|---|
Additional Technical Specifications
| Connector Amperage Rating CU (Derated where applicable) | 700 Amps |
|---|
| Conductor Type | Braid |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366901674 |
| Carton Quantity Description | STD PACK QTY 1 |
|---|---|
| NEMA Code | 0-000-1 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | 3/8 |
|---|
