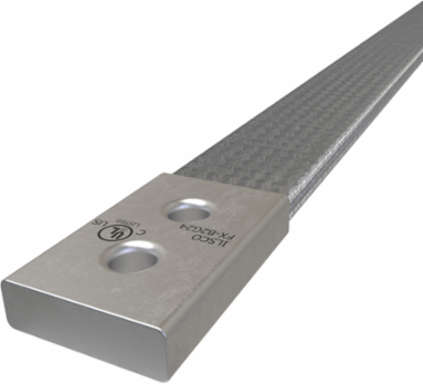

ILSCO FX-B2G24 Copper Flex Braid Connector, Conductor Equivalent Size 600, 2 Braids, 24in, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Tin Plated, UL/cUL
- MPN: FX-B2G24
- UPC: 783669016383
- PPN: ILC-FX-B2G24
CAD
$387.81
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Flex Braid Connector, Conductor Equivalent Size 600, 2 Braids, 24in, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Tin Plated, UL/cUL
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.5 in |
|---|---|
| Weight | 4.68866323418167 lbs |
| Length | 24 in |
|---|---|
| Width | 1.63 in |
Dimensions
| Dimension G (IN) | 0.75 |
|---|---|
| Height BX (IN) | 4 |
| Length of Ferrule (mm) | 63.5 |
| Mounting Hole Diameter (IN) | 0.41 |
| Mounting Hole Spacing (IN) | 1 |
| Weight BX (LB) | 3.936 |
| Dimension G (mm) | 19.05 |
|---|---|
| Length of Ferrule (IN) | 2.5 |
| Mounting Bolt/Stud Size (mm) | 965.2 |
| Mounting Hole Diameter (mm) | 10.414 |
| Mounting Hole Spacing (mm) | 25.4 |
| Width BX (IN) | 4 |
Testing Standards
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
|---|---|
| UL / CULUS Specification | UL/cUL 467 Listed |
| UL Control Number | 667P |
|---|---|
| UL File Number | E34440 |
Additional Class Attributes
| Circular Mils/Braid | 672000 |
|---|---|
| Number of Braids | 2 |
| Shape Of Conductor | Flat |
| Mounting Hole Type | Thru |
|---|---|
| Number of Mounting Holes | 2 |
Material and Finish
| Conductor Material | Copper |
|---|---|
| Material | Copper |
| Connector Finish | Tin |
|---|
Conductor Ranges
| Wire Equivalent | 600 kcmil |
|---|
Additional Technical Specifications
| Connector Amperage Rating CU (Derated where applicable) | 875 Amps |
|---|
| Conductor Type | Braid |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366901638 |
| Carton Quantity Description | STD PACK QTY 1 |
|---|---|
| NEMA Code | 0-000-1 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | 3/8 |
|---|
