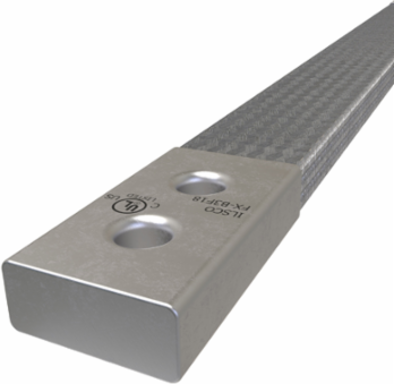

ILSCO FX-B3F18 Copper Flex Braid Connector, Conductor Equivalent Size 696, 3 Braids, 18in, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Tin Plated, UL/cUL
- MPN: FX-B3F18
- UPC: 783669016123
- PPN: ILC-FX-B3F18
CAD
$334.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Flex Braid Connector, Conductor Equivalent Size 696, 3 Braids, 18in, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Tin Plated, UL/cUL
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.59 in
- Weight
- 4.09347302719441 lbs
Length18 in
Width1.38 in
Dimensions
- Dimension G (IN)
- 0.75
- Height BX (IN)
- 4
- Length of Ferrule (mm)
- 63.5
- Mounting Hole Diameter (IN)
- 0.41
- Mounting Hole Spacing (IN)
- 1
- Weight BX (LB)
- 3.222
Dimension G (mm)19.05
Length of Ferrule (IN)2.5
Mounting Bolt/Stud Size (mm)965.2
Mounting Hole Diameter (mm)10.414
Mounting Hole Spacing (mm)25.4
Width BX (IN)4
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL/cUL 467 Listed
UL Control Number667P
UL File NumberE34440
Additional Class Attributes
- Circular Mils/Braid
- 691200
- Number of Braids
- 3
- Shape Of Conductor
- Flat
Mounting Hole TypeThru
Number of Mounting Holes2
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishTin
Conductor Ranges
- Wire Equivalent
- 696 kcmil
Additional Technical Specifications
- Connector Amperage Rating CU (Derated where applicable)
- 900 Amps
Conductor TypeBraid
General
- Bag Quantity
- 1
- Dual Rated
- No
- UPC Code
- 78366901612
Carton Quantity DescriptionSTD PACK QTY 1
NEMA Code0-000-1
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 3/8
