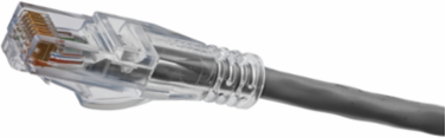

Bryant HC5EGY20 Cat 5E Patch Cord, 20 ft, 8-Conductor, #24 AWG, RJ45, Gray
- MPN: HC5EGY20
- UPC: 662620234991
- PPN: HBL-HC5EGY20
CAD
$30.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Solutions, Patch Cords, SPEEDGAIN, Cat 5e, Slim, 20' Length, Gray
Features
- Verified Category 5E Component Exceeds TIA Limits
- Plug Optimized For High Density Switch Ports
- Gigabit Assurance
- Qualified to 150% of 802.3bt PoE Current Level
Documentation & Downloads
Specifications
Additional
| Conductor Count | 8-Conductor |
|---|---|
| Temperature Rating | Per TIA |
| Category | 5E |
| Length | 20 ft |
| Outside Diameter | 0.218 in. |
| Conductor Type | Copper |
| Cable to Plug Tensile Strength | 20+ lbs |
| Insulation Material | Flame Retardant PVC |
| Contact Plating | 50 micro-inch Gold with 100 micro-inch under plating |
| Plug Body Material | Polycarbonate UL 94V-0 |
| Standard Compliance | ANSI/TIA/EIA-568-C.2, ISO 11801/60603-7-41 |
| OEM Brand Name | Hubbell Premise Wiring |
| Voltage | 600V AC |
|---|---|
| Attenuation | .1 dB |
| PoE Current Level Qualification | 150% of 802.3bt |
| Wire Gauge | 24 AWG |
| Connector Type | RJ45 |
| Conductor Stranding | Stranded |
| Jacket Material | Flame Retardant PVC-CM |
| Boot Material | PVC |
| Plug Boot Material | Polycarbonate UL 94V-0 |
| Color | Gray |
| Mating Cycles | 2000+ |
