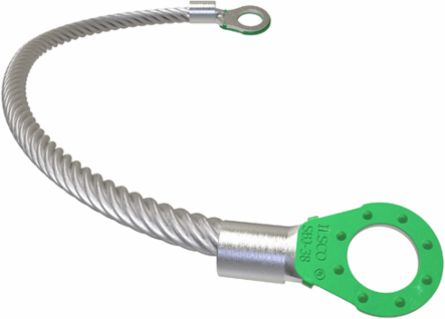

ILSCO SBJ-38-12 Copper Surface Bonding Jumper, 2 Holes, 3/8in Bolt Size, 12in, UL
- MPN: SBJ-38-12
- UPC: 783669006339
- PPN: ILC-SBJ-38-12
CAD
$21.01
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Surface Bonding Jumper, 2 Holes, 3/8in Bolt Size, 12in, UL
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.399 in | 10.1346 mm
- Weight
- 1.109 lbs
Length12.67 in | 321.818 mm
Width0.67 in | 17.018 mm
Dimensions
- Dimension G (IN)
- 0.335
- Height BX (IN)
- 3.625
- Length (mm)
- 321.818
- Mounting Center Line Length (IN)
- 12
- Mounting Hole Diameter (IN)
- 0.406
- Weight BX (LB)
- 11.354
- Width (mm)
- 17.018
Dimension G (mm)8.509
Height (mm)10.1346
Mounting Bolt/Stud Size (mm)965.2
Mounting Center Line Length (mm)304.8
Mounting Hole Diameter (mm)10.3124
Width BX (IN)6.375
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 2703 Listed, UL 467 Listed
UL Control Number667P
UL File NumberE354420, E34440
Additional Class Attributes
- Mounting Hole Type
- Thru
- Number of Poles
- 1
Number of Mounting Holes2
Shape Of ConductorRound
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishViritium Plated
Conductor Ranges
- Wire Equivalent
- 6 AWG
Additional Technical Specifications
- Conductor Type
- Flex
General
- Bag Quantity
- 1
- NEMA Code
- 0-000-1
Carton Quantity DescriptionSTD PACK QTY 10
UPC Code78366900633
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 3/8
Color
- Clip Color
- Green
