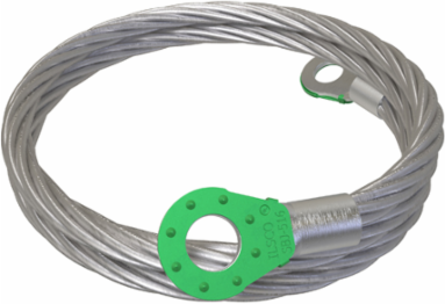

ILSCO SBJ-516-40 Copper Surface Bonding Jumper, 2 Holes, 5/16in Bolt Size, 40in, UL
- MPN: SBJ-516-40
- UPC: 783669007398
- PPN: ILC-SBJ-516-40
CAD
$41.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Surface Bonding Jumper, 2 Holes, 5/16in Bolt Size, 40in, UL
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.399 in | 10.1346 mm
- Weight
- 0.599033616683887 lbs
Length40.67 in | 1033.018 mm
Width0.67 in | 17.018 mm
Dimensions
- Dimension G (IN)
- 0.335
- Height BX (IN)
- 7
- Length (mm)
- 1033.018
- Mounting Center Line Length (mm)
- 1016
- Mounting Hole Diameter (mm)
- 8.4074
- Width BX (IN)
- 8
Dimension G (mm)8.509
Height (mm)10.1346
Mounting Center Line Length (IN)40
Mounting Hole Diameter (IN)0.331
Weight BX (LB)32.261
Width (mm)17.018
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 2703 Listed, UL 467 Listed
UL Control Number667P
UL File NumberE354420, E34440
Additional Class Attributes
- Mounting Hole Type
- Thru
- Number of Poles
- 1
Number of Mounting Holes2
Shape Of ConductorRound
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishViritium Plated
Conductor Ranges
- Wire Equivalent
- 6 AWG
Additional Technical Specifications
- Conductor Type
- Flex
General
- Bag Quantity
- 1
- NEMA Code
- 0-000-1
Carton Quantity DescriptionSTD PACK QTY 10
UPC Code78366900739
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 5/16
Color
- Clip Color
- Green
