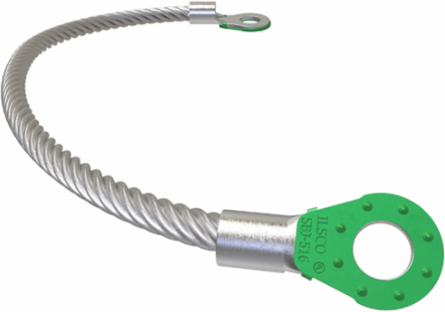

Ilsco SBJ-516-6 Copper Surface Bonding Jumper, 2 Holes, 5/16in Bolt Size, 6in, UL
Ilsco SBJ-516-6 Copper Surface Bonding Jumper, 2 Holes, 5/16in Bolt Size, 6in, UL
- MPN: SBJ-516-6
- UPC: 0783669006124
- PPN: ILC-SBJ-516-6
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$15.21/ EA
Specifications
Dimensions
- Dimension G (IN)
- 0.335
- Height BX (IN)
- 3.625
- Length (mm)
- 169.418
- Mounting Center Line Length (mm)
- 152.4
- Mounting Hole Diameter (mm)
- 8.4074
- Width BX (IN)
- 6.375
Dimension G (mm)8.509
Height (mm)10.1346
Mounting Center Line Length (IN)6
Mounting Hole Diameter (IN)0.331
Weight BX (LB)7.054
Width (mm)17.018
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 2703 Listed, UL 467 Listed
UL Control Number667P
UL File NumberE354420, E34440
Additional Class Attributes
- Mounting Hole Type
- Thru
- Number of Poles
- 1
Number of Mounting Holes2
Shape Of ConductorRound
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishViritium Plated
Conductor Ranges
- Wire Equivalent
- 6 AWG
Additional Technical Specifications
- Conductor Type
- Flex
General
- Bag Quantity
- 1
- NEMA Code
- 0-000-1
Carton Quantity DescriptionSTD PACK QTY 10
UPC Code78366900612
Specifications
- Height
- 0.399 in | 10.1346 mm
- Weight
- 0.68 lbs
Length6.67 in | 169.418 mm
Width0.67 in | 17.018 mm
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 5/16
Color
- Clip Color
- Green
