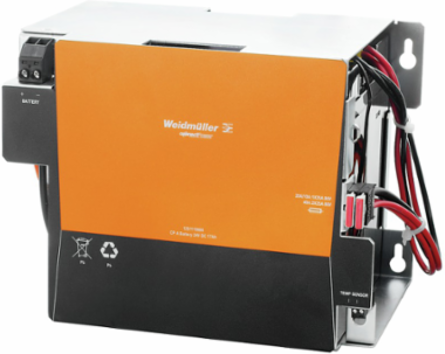

Weidmuller 1251110000 CP A BATTERY 24V DC17AH
- MPN: 1251110000
- PPN: WDM-1251110000
CAD
$694.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Battery
Documentation & Downloads
Specifications
General Data
| Battery type | Maintenance-free AGM lead-acid battery |
|---|---|
| Max. perm. air humidity (operational) | 5 %…95 % RH |
| Operating temperature | 0 °C...40 °C |
| Series switching capability | No |
| Vibration DIN rail/wall in accordance with IEC 68-2-6 | / 0.7 g |
| Latest commissioning | 9 months |
|---|---|
| Operating life | 6...9 years at 20°C |
| Protection degree | IP20 |
| Shock wall acc. to IEC 68227 | 30 g |
Connection Data (Input)
| Conductor cross-section, AWG/kcmil , max. | 6 |
|---|---|
| Conductor cross-section, flexible , min. | 0.5 mm² |
| Conductor cross-section, rigid , min. | 0.2 mm² |
| Tightening torque, min. | 1.2 Nm |
| Conductor cross-section, AWG/kcmil , min. | 22 |
|---|---|
| Conductor cross-section, rigid , max. | 16 mm² |
| Tightening torque, max. | 1.5 Nm |
| Wire connection cross section, flexible (input), max. | 16 mm² |
Approvals
| Approvals | CULUS, EAC |
|---|---|
| UL File Number Search | E354601 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 242 mm |
|---|---|
| Height | 178 mm |
| Depth | 160 mm |
| Net weight | 13,330 g |
| Width (inches) | 9.528 inch |
|---|---|
| Height (inches) | 7.008 inch |
| Depth (inches) | 6.299 inch |
Input
| Charging current, max. | 2.55 A |
|---|---|
| Rated input voltage | 24 V DC |
| Nominal capacity | 17 Ah |
|---|
Operating Interfaces And Control Inputs
| Temperature probe | NTC 100 kΩ |
|---|
Classifications
| ETIM 6.0 | EC002850 |
|---|---|
| eClass 9.0 | 27-04-06-92 |
| eClass 10.0 | 27-04-06-92 |
| ETIM 7.0 | EC002850 |
|---|---|
| eClass 9.1 | 27-04-92-01 |
Output

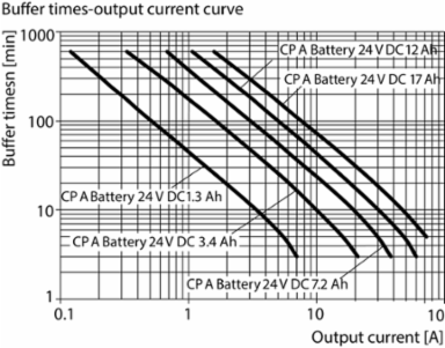

| Buffer time 10A | 81 min |
|---|---|
| Buffer time 40A | 13.5 min |
| Overload and short circuit protection | 2x25 A fuse |
| Protection against inverse voltage | Yes |
| Buffer time 20A | 34.2 min |
|---|---|
| Output current, max. | 50 A |
| Parallel connection option | Yes |
| Temperature probe | NTC 100 kΩ |
Connection Data (Signal)
| Number of terminals | 2 |
|---|---|
| Wire connection cross-section, flexible (signal), min. | 0.2 mm² |
| Wire cross-section, AWG/kcmil , max. | 16 |
| Wire cross-section, solid , max. | 1.5 mm² |
| Wire connection cross-section, flexible (signal), max. | 1.5 mm² |
|---|---|
| Wire connection method | Pluggable screw connection |
| Wire cross-section, AWG/kcmil , min. | 28 |
| Wire cross-section, solid , min. | 0.2 mm² |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Protection class | III, with no ground connection, for SELV |
|---|
Connection Data (Output)
| Conductor cross-section, AWG/kcmil , max. | 6 |
|---|---|
| Conductor cross-section, flexible , max. | 16 mm² |
| Conductor cross-section, rigid , max. | 16 mm² |
| Number of terminals | 2 (+ / -) |
| Tightening torque, min. | 1.2 Nm |
| Conductor cross-section, AWG/kcmil , min. | 22 |
|---|---|
| Conductor cross-section, flexible , min. | 0.5 mm² |
| Conductor cross-section, rigid , min. | 0.2 mm² |
| Tightening torque, max. | 1.5 Nm |
Temperatures
| Operating temperature, max. | 40 °C |
|---|---|
| Storage temperature, max. | 40 °C |
| Operating temperature | 0 °C...40 °C |
| Storage temperature | -15 °C...40 °C |
| Operating temperature, min. | 0 °C |
|---|---|
| Storage temperature, min. | -15 °C |
| Ambient temperature | 0°...+40°C (Charging); -15°…+50°C (Discharging) |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E354601 |
|---|
