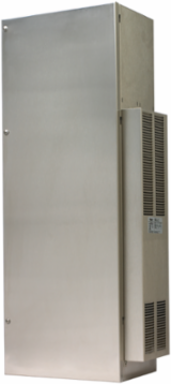

Nvent Hoffman CR430826G024 ProAir Harsh Environment Outdoor with Cntr 3R CR43, 8000BTU 230V, Brushed, SS304
Nvent Hoffman CR430826G024 ProAir Harsh Environment Outdoor with Cntr 3R CR43, 8000BTU 230V, Brushed, SS304
- MPN: CR430826G024
- UPC: 783510193157
- PPN: HOF-CR430826G024
- UNSPSC: 40101701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
ProAir Harsh Environment Air Conditioners cool components in corrosive environments on ambient side. This ProAir Harsh Environment Outdoor with Cntr 3R CR43, CR430826G024 item is rated 8000BTU 230V with material of SS304 finish Brushed.
Features
- Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- R134a, R513A or R407C Refrigerant
- Models for 115, 230 and 460 single phase VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
- High-performance fans and blowers designed for densely packed enclosures
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Indoor Air Conditioner models also include Electro-Mechanical Thermostat and Surge Suppressor
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 400
- Nominal Voltage
- 230
- Number of Phases
- 1
- Nominal Capacity Watts
- 2,344
- Protection Rating
- NEMA Type 12
- Material
- Stainless Steel 304
- Thickness (T)
- 1.21
- Weight
- 168
- Model
- Surface Mounted
- BTU Rating
- 8,000
- Power
- 958/1182 W
- Housing Material
- Stainless Steel
- Color
- Lt Gray
Height (H)1,100
Depth (D)260
Remote Access ControlNo
Nominal Capacity Btu/h8,000
Max Current5
Product FamilyProAir
FinishBrushed #3
NEMA Rating12 Indoor, dust-resistant
Sub BrandProAir
Voltage Rating230 VAC
Amperage Rating4.9/5.0 A
Frequency Rating50/60 Hz
Operating Temperature131 deg F
