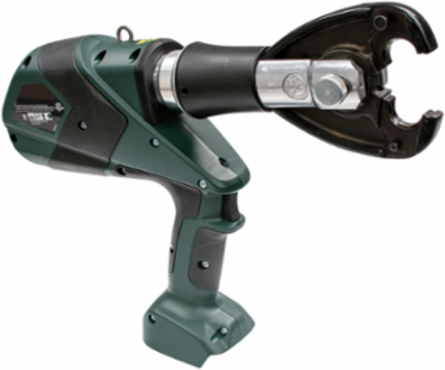

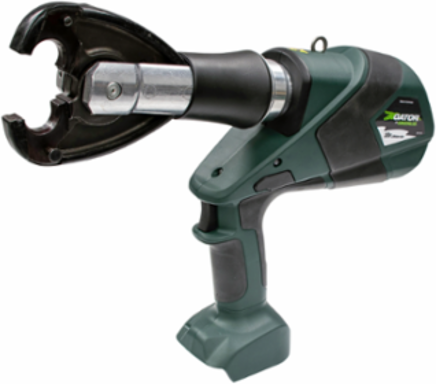

Greenlee EK425PLXDB Gator 6 Ton Crimper, 15 Inch Length, 18V Battery Powered, Pistol Grip
- MPN: EK425PLXDB
- UPC: 783310629719
- PPN: GRN-EK425PLXDB
- UNSPSC: 27111518
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Gator 6 Ton Crimper, 15 Inch Length, 18V Battery Powered, Pistol Grip
Features
- The Greenlee Gator EK425PLX features a pistol style configuration, optimizing balance and control in confined work areas.
- Interchangeable heads for a variety of crimping and cutting applications.
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
- Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
Specifications
Key Specifications
- Country of Origin
- Germany
- Length
- 15 IN / 381 MM
- Weight
- 7.55 LB / 3.42404 KG
- Max Operating Temperature
- 104 F / 40 C
- Light
- LED
- Sub Brand
- Gator
- Wire Size
- Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
- Crimping Force
- 12,000 lbs. (53 kN)
- Connector Type
- Service entrance connectors, H-Taps, Tension splices, Jumper splices, Stirrups, Color coded lugs & splices
Width3 IN / 76.2 MM
Height11 IN / 279.4 MM
Min Operating Temperature1 F / -17.22222 C
PowerBattery Powered
Handle TypePistol Style with over molded rubber grip
StandardC/US UL Classified
Overall Legth15 IN (381mm)
Crimping CapacityConnector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
Motor Information
- Type
- DC Brushed Permanent Magnet
Voltage18 VLT
Regulations
- SDS Required
- No
- CA Prop 65 Reproductive Harm
- No
- REACH Compliant
- Yes
CA Prop 65 CancerNo
RoHS RegulationsNo
CA SCAQMDNo
Battery Information
- Required
- Yes
