nVent Caddy CRLD37BEG nVent CADDY Rod Lock Bottom-Mount Duct Bracket, 3/8" Rod
- MPN: CRLD37BEG
- UPC: 782856793946
- PPN: CAD-CRLD37BEG
- UNSPSC: 40141725
CAD
$28.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

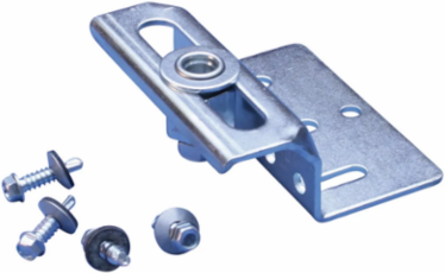

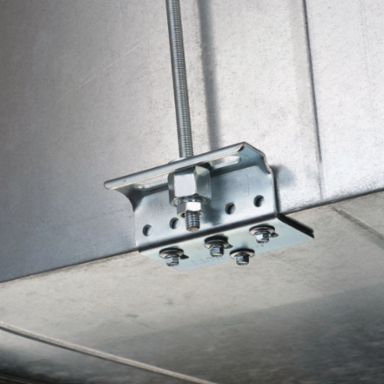

nVent CADDY Rod Lock Bottom-Mount Duct Bracket, 3/8" Rod
Features
- Ideal for modular assembly – allows attachment of brackets to sections of duct while safely on the ground
- Slotted holes in bracket allow for horizontal adjustment of the bracket relative to the duct
- Easy "push-to-install" design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position
- Ready to use out of the box and eliminates the need for cutting and preparing sections of strut, angle iron, or strap
- Integrated adjustment nut enables fine tuning the system height up or down
- Lock nut can be finger tightened, locking the rod in place
- Extremely useful in tight spaces where wrenches are difficult to use
- Includes self-tapping sheet metal screws to attach bracket to duct
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Finish
- Electrogalvanized
- Height (H)
- 43.18
- Width (W)
- 101.6
- Static Load
- 2,890
MaterialSteel
Rod Size (RS)0.375
Length (L)3.5
Static Load (F)650
Sub BrandCADDY
