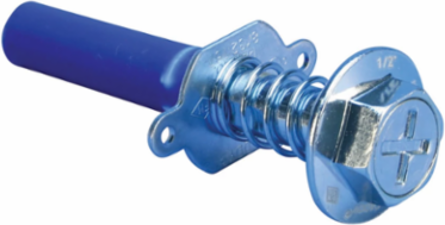

nVent Caddy CRLM37EG Quick 3/8" Metal Decking Preset Anchor with Push-to-Install Technology - 830LB
- MPN: CRLM37EG
- UPC: 782856793885
- PPN: CAD-CRLM37EG
- UNSPSC: 31162101
CAD
$15.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Innovative preset anchors for metal decking, designed to simplify installation of threaded rod assemblies thanks to the nVent CADDY Rod Lock push-to-install technology. Ideal for prefabrication. Push-to-install technology, female threaded 3/8"-16.
Features
- Set in place through a drilled hole in the metal decking before the concrete is poured
- Eliminate overhead drilling into building structure - nVent CADDY Rod Lock Preset Anchors are cast in place
- Easy "push-to-install" design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position

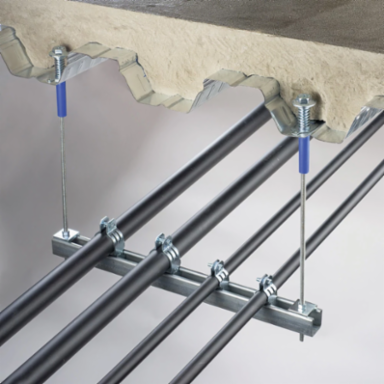

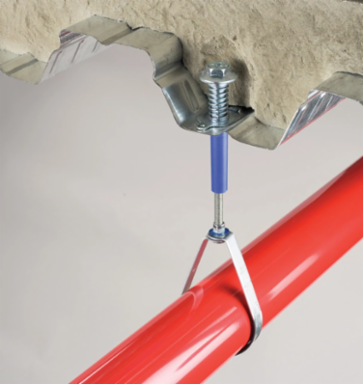

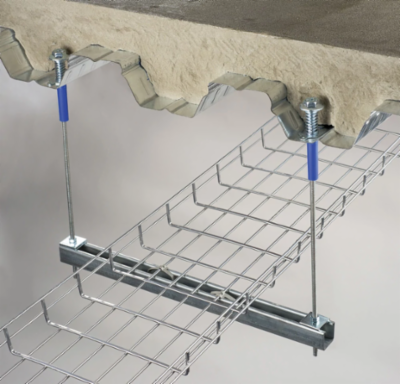

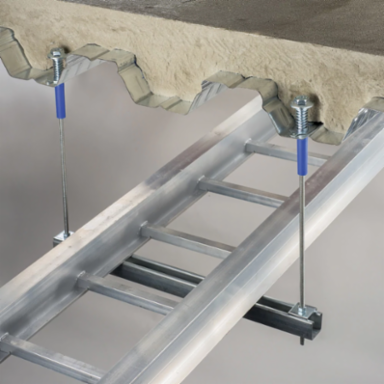

- Can be used in lower and upper flute installations
- Works with slightly damaged threads and minor burrs on the threaded rod
- Prefabricated assemblies easily lift and lock into place, helping to save time and money
- Plastic flange acts as insert locator when the forms are removed
- Rated for cracked concrete per ICC-ES AC446 according to ICC-ES ESR-3864 evaluation report
- Suitable for seismic bracing according to ICC-ES ESR-3864 evaluation report
- Plenum-rated for use in air-handling spaces based on testing according to ANSI/UL 2043
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Finish
- Electrogalvanized
- Diameter 1 (Ø1)
- 42
- Height (H)
- 142.2
- Width (W)
- 38.1
- Static Load (F)
- 830
- Sub Brand
- CADDY
MaterialSteel
Rod Size (RS)0.375
Diameter 2 (Ø2)17.8
Length (L)2.8
Drill Bit Diameter19
Static Load3,700
