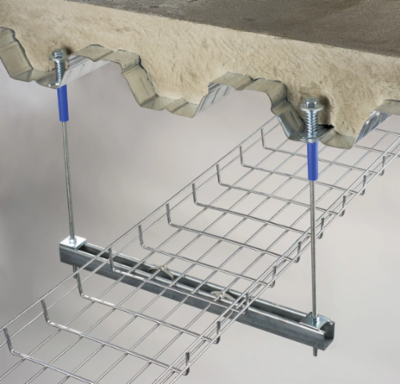

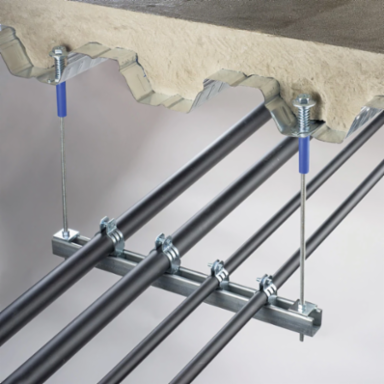

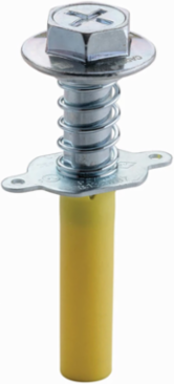

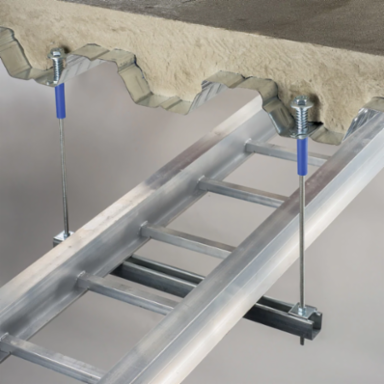

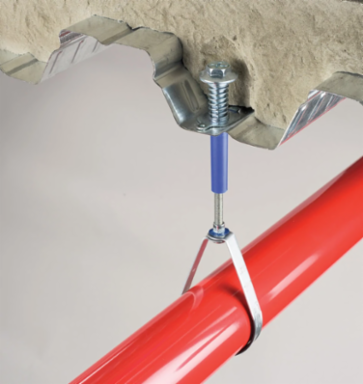

nVent Caddy CRLM50EG nVent CADDY Rod Lock Metal Decking Preset Anchor, 1/2" Rod
- MPN: CRLM50EG
- UPC: 782856793908
- PPN: CAD-CRLM50EG
- UNSPSC: 31162101
CAD
$19.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
nVent CADDY Rod Lock Metal Decking Preset Anchor, 1/2" Rod
Features
- Set in place through a drilled hole in the metal decking before the concrete is poured
- Eliminate overhead drilling into building structure - nVent CADDY Rod Lock Preset Anchors are cast in place
- Easy "push-to-install" design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position
- Can be used in lower and upper flute installations
- Works with slightly damaged threads and minor burrs on the threaded rod
- Prefabricated assemblies easily lift and lock into place, helping to save time and money
- Plastic flange acts as insert locator when the forms are removed
- Rated for cracked concrete per ICC-ES AC446 according to ICC-ES ESR-3864 evaluation report
- Suitable for seismic bracing according to ICC-ES ESR-3864 evaluation report
- Plenum-rated for use in air-handling spaces based on testing according to ANSI/UL 2043
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Finish
- Electrogalvanized
- Diameter 1 (Ø1)
- 49.5
- Height (H)
- 144.8
- Width (W)
- 38.1
- Static Load (F)
- 830
- Sub Brand
- CADDY
MaterialSteel
Rod Size (RS)0.5
Diameter 2 (Ø2)20.3
Length (L)2.8
Drill Bit Diameter22
Static Load3,700
