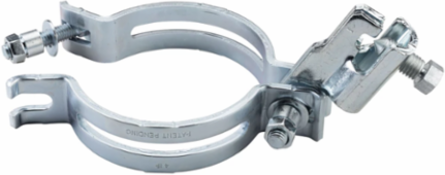

nVent Caddy CSB0125 Universal Sway Brace, EG, 1 1/4" Pipe
- MPN: CSB0125
- UPC: 782856920151
- PPN: CAD-CSB0125
- UNSPSC: 40141725
CAD
$81.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

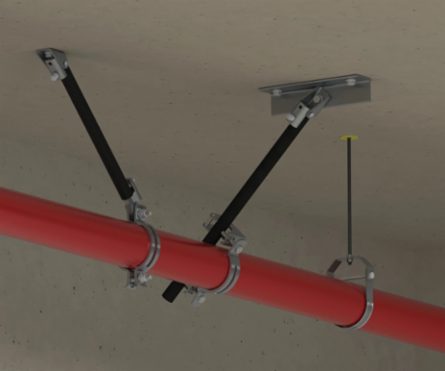

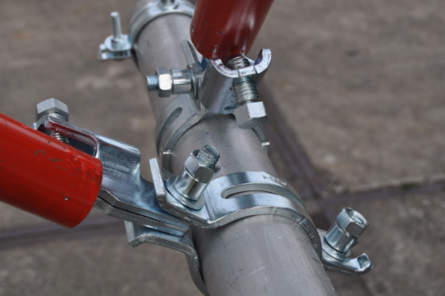

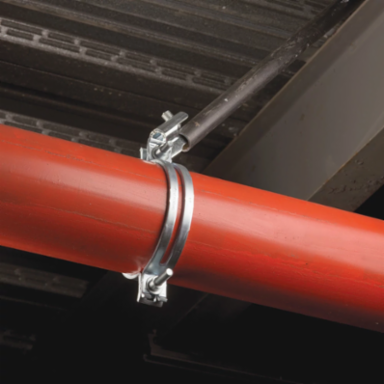

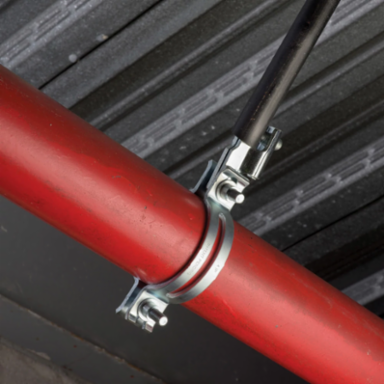

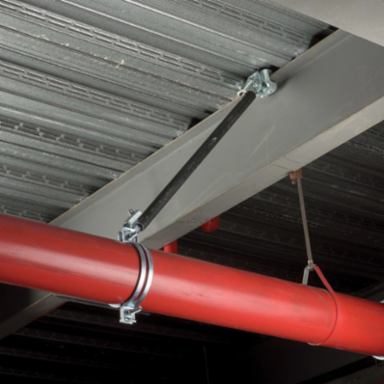

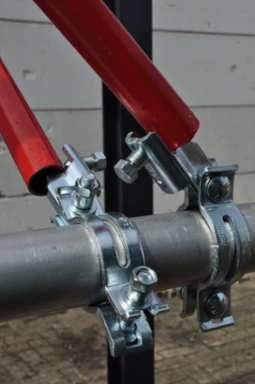

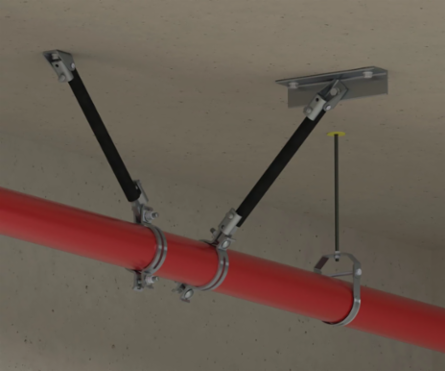

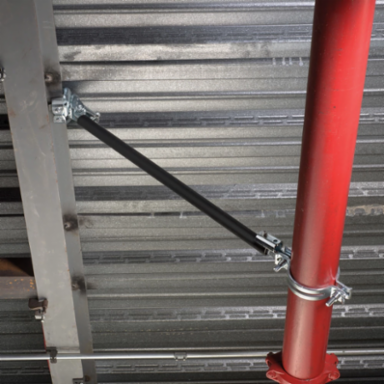

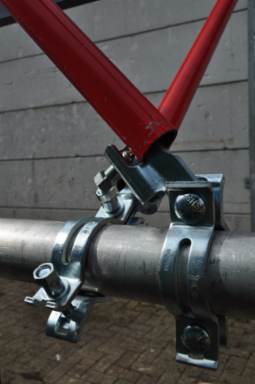

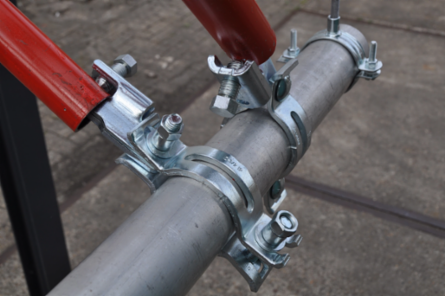

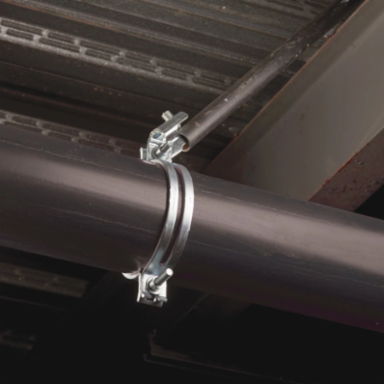

The nVent CADDY Universal Sway Brace is an easy, slip-on seismic sway brace for suspended pipes. EG, 1 1/4" Pipe, 32 DN.
Features
- Used for both lateral and longitudinal sway brace applications
- Snap-off bolt head helps enable easy installation and inspection
- Works with 1" to 2" (25,4mm to 50,8mm) brace pipes to reduce inventory
- Works with 12 gauge or thicker Type A solid strut as brace member
- Meets NFPA®-13 and CEN/TS 1755:2021 requirements for seismic sway bracing
- FM Approved with the following brace members: Type A Solid Strut (12 gauge or thicker) and 1-2 in Sch40/EN 10255H Pipe
- FM Specification Tested with the following brace members: Type A Solid Strut (12 gauge or thicker) and 1-2 in Sch40/EN 10255H Pipe
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Finish
- Electrogalvanized
- Pipe Size, Nominal
- 31.75
- Brace Pipe Size
- 1
- Width (W)
- 38
- Width
- 1 1/2"
- Pipe Size
- 1 1/4"
MaterialSteel
Pipe Size, Nominal (Ø)1.25
NB/DN32
Brace NB/DN25
Sub BrandCADDY
Tube Size1" – 2"
Material of ConstructionSteel
