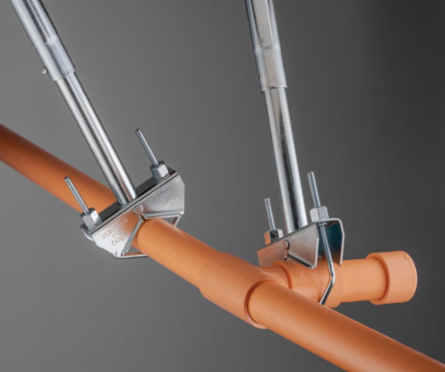

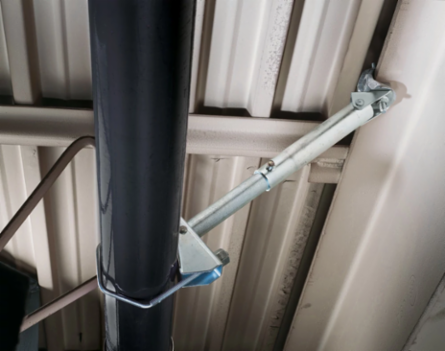

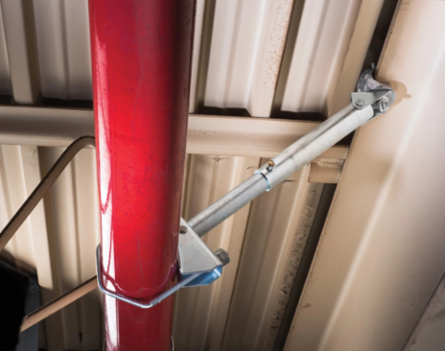

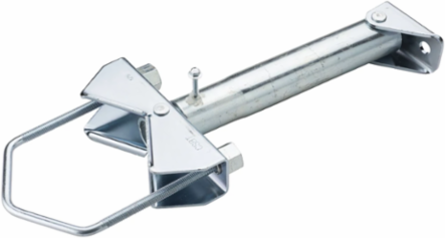

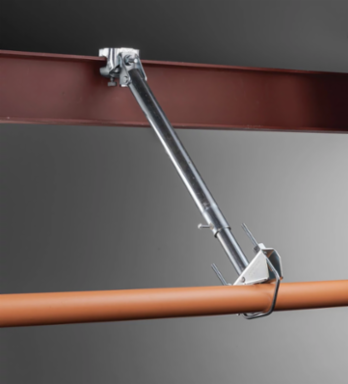

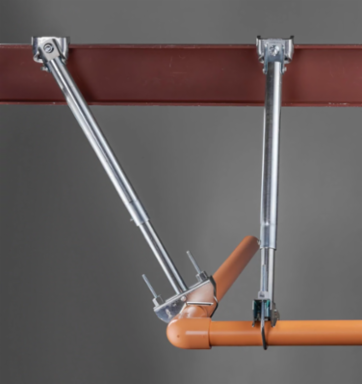

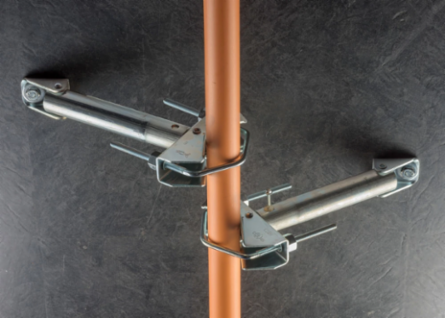

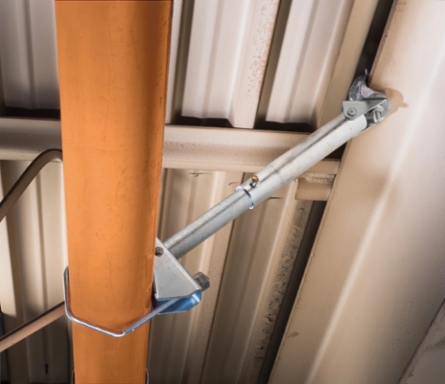

nVent Caddy CSBT1 Lateral Telescoping Brace Assembly, 1'–1 1/2' Brace Length
- MPN: CSBT1
- UPC: 782856864455
- PPN: CAD-CSBT1
- UNSPSC: 40141725
CAD
$155.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Telescoping brace assembly eliminates the need to cut pipe, minimizing waste and allowing one person to effectively complete the installation.Lateral Brace Assembly, 1'–1 1/2' Length
Features
- Complete, out of the box assembly is compatible with both steel (IPS) and CPVC piping
- Telescoping brace member eliminates the need to cut pipe, minimizing waste and allowing one person to effectively complete the installation
- Easy "push-to-install" nVent CADDY Rod Lock feature allows the V-bolt to assemble quickly, and helps eliminate the risk of compressing CPVC pipe
- Length of telescoping lateral brace is fixed by installing the included self-drilling screw
- Electrogalvanized coating throughout the entire assembly provides superior corrosion resistance, and eliminates the risk of exposing CPVC pipe to any harmful oils or residue
- Designed to reduce the installation time of a complete brace by up to 80%
- Design allows center loading of brace on the service pipe
- Meets requirements of NFPA® 13
- FM® Specification Tested
- Certified chemically compatible with CPVC piping systems
- Meets CEN/TS 17551:2021 requirements for Seismic Sway Bracing
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Finish
- Electrogalvanized
- NB/DN
- 25
- Wrench Size
- 5/16"
- Length
- 1' – 1 1/2'
- Material of Construction
- Steel
MaterialSteel
Brace Length (L)0.3
Hole Size (HS)12.7
Sub BrandCADDY
Pipe Size1" – 4"
