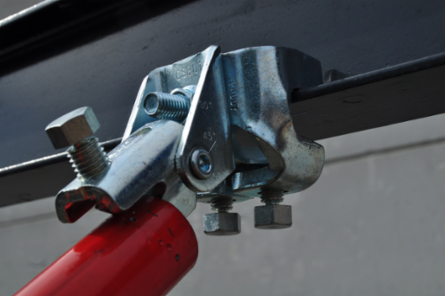

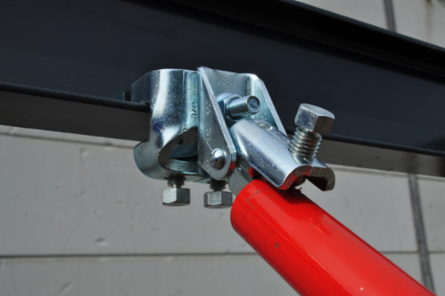

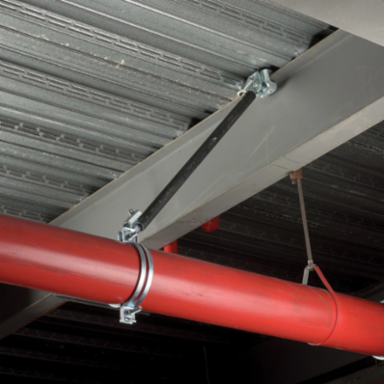

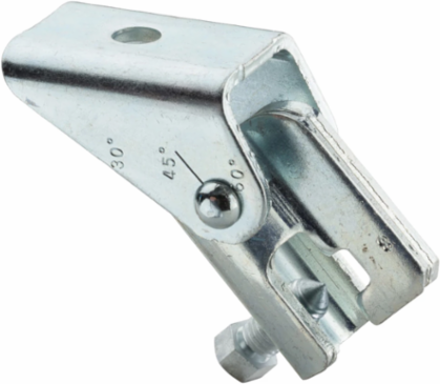

nVent Caddy CSBU2 Universal Structural Bracket, EG, 13/16" Hole
- MPN: CSBU2
- UPC: 782856920069
- PPN: CAD-CSBU2
- UNSPSC: 40141725
CAD
$28.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Universal design allows one product to attach directly to concrete, wood, bar joist or I-beam adapters. Integrated angle gauge displays brace member of installation. Low profile minimizes prying effect. 13/16" Hole.
Features

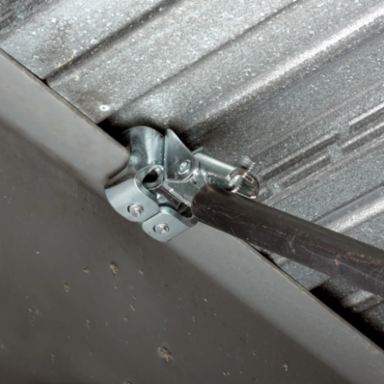

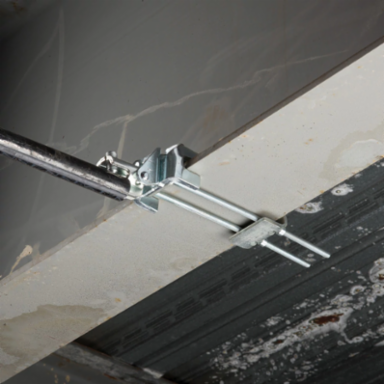

- Universal design allows one product to attach directly to concrete, wood, bar joist or I-beam adapters

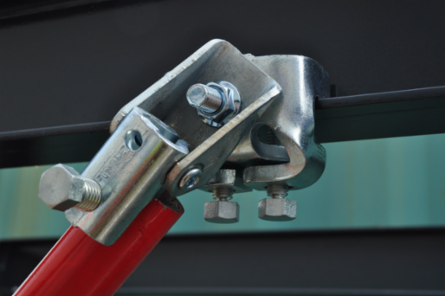

- Integrated angle gauge easily displays brace member angle of installation

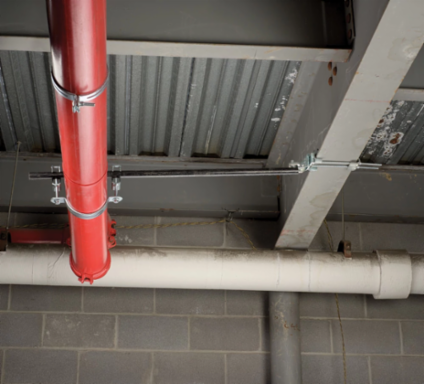

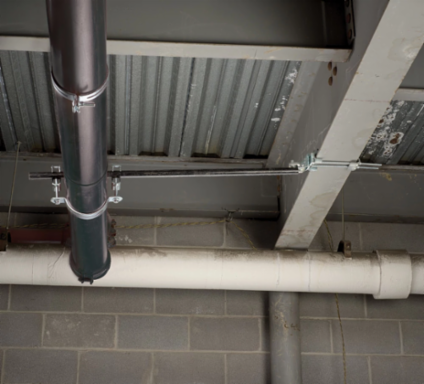

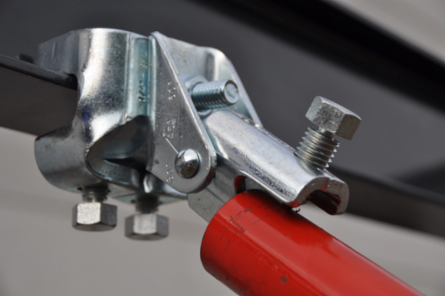

- Snap-off bolt head helps enable easy installation and inspection of seismic sway braces
- Works with 1" through 2" (25,4mm through 50,8mm) brace pipes to reduce inventory
- Low profile minimizes prying effect on concrete fasteners
- Meets NFPA® 13 as pre-qualified for seismic applications
- FM Approved with the following brace members: Type A Solid Strut (12 gauge or thicker) and 1-2 in Sch40/EN 10255H Pipe
- FM Specification Tested with the following brace members: Type A Solid Strut (12 gauge or thicker), 1-2 in Sch40/EN 10255H Pipe, 1 in EMT Conduit, and 1 in Rigid Conduit
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Finish
- Electrogalvanized
- Width (W)
- 49
- UL Listed Load
- 8,896
- Width
- 1 15/16"
MaterialSteel
Hole Size (HS)21
Thickness (T)5
Sub BrandCADDY
Material of ConstructionSteel
