Schmersal 101190025 CSS-T-A Junction Box, M12 Connector, 60 VDC, 43 mm Length, 21 g Weight
- MPN: 101190025
- PPN: SCM-101190025
CAD
$33.92
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
CSS-T-A Junction Box, M12 Connector, 60 VDC, 43 mm Length, 21 g Weight
Documentation & Downloads
Specifications
Key Specifications
| Length | 43 mm |
|---|---|
| Height | 16.5 mm |
| Width | 16.5 mm |
|---|
Electrical data
| Rated operating voltage | 60 VDC |
|---|
| Operating current | 2,000 mA |
|---|
Note
| Note (General) | Please note that voltage losses could occur (due to cable length, cable section, voltage drop/sensor). It also restricts the maximum number of sensors wired in series. |
|---|

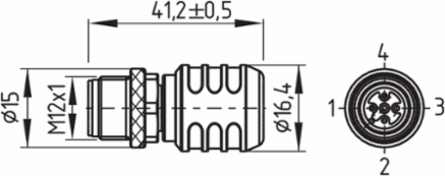

Mechanical data - Dimensions
| Width | 16.5 mm |
|---|---|
| Diameter of the ISO-thread | M12 |
| Height | 16.5 mm |
|---|
General data
| Versions | straight |
|---|---|
| Gross weight | 21 g |

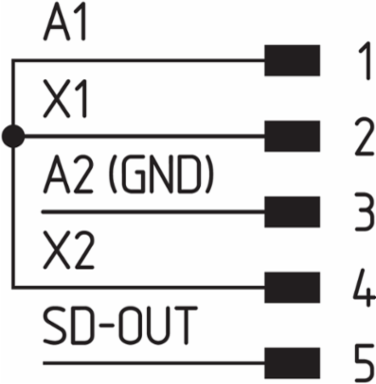

| Connector (electric) | 1 x Male connector, 5-pole |
|---|
Ambient conditions
| Ambient temperature | -25 ... +70 °C |
|---|
Accessory
| Recommendation (product combination) | Sensors |
|---|
