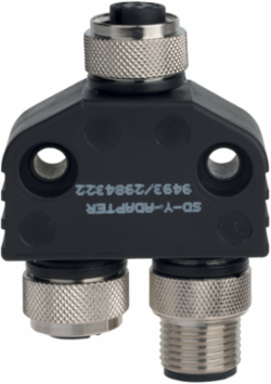

Schmersal 101209416 Y-Adapter Junction Box, M12, 8-Pole, IP65/IP67, 1 m Cable Length, 54.5 mm
- MPN: 101209416
- PPN: SCM-101209416
CAD
$192.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Y-Adapter Junction Box, M12, 8-Pole, IP65/IP67, 1 m Cable Length, 54.5 mm
Documentation & Downloads
Specifications
Key Specifications
- Length
- 54.5 mm
- Height
- 20 mm
Width38 mm
Electrical data
- Operating current
- 4,000 mA

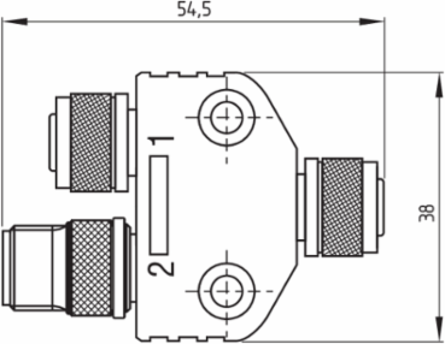

Mechanical data - Dimensions
- Width
- 38 mm
- Diameter of the ISO-thread
- M12
Height20 mm
Mechanical data - connector side A
- Connector coding
- A
- Material of the gland
- Metal, CuZn, nickel-plated
Connector latchingScrew locking
Material of the handlePlastic, TPU
General data
- Versions
- Y-adapter
- Gross weight
- 50 g

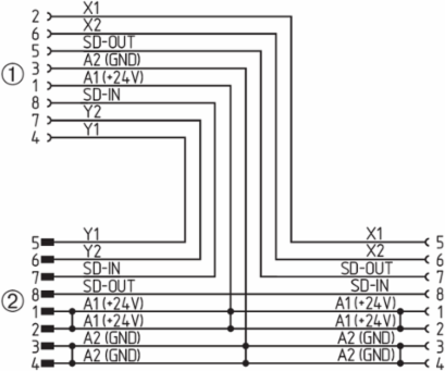

Connector (electric)2 x Female connector, 8-pole | 1 x Male connector, 8-pole
Ambient conditions
- Degree of protection
- IP65 | IP67
Ambient temperature-25 ... +75 °C
Mechanical data - Connection technique
- Length of cable
- 1 m
- Bending radius (repeated)
- 10 x Ø-cable
Bending radius (fixed)5 x Ø-cable
Mechanical data
- Tightening torque, maximum
- 1 Nm
Accessory
- Recommendation (product combination)

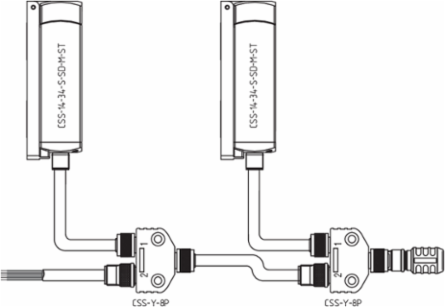

- Sensors and solenoid interlock
