Nvent Hoffman

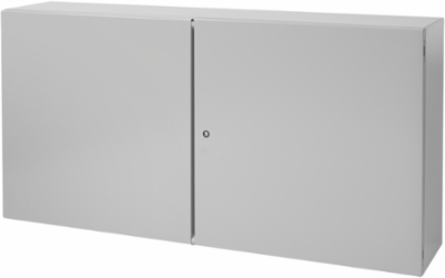

Nvent Hoffman CTD24488 Concept Two-Door Enclosure 24 Inch x 48 Inch x 8 Inch, Gray Steel, IP55

Concept Two-Door Enclosure 24 Inch x 48 Inch x 8 Inch, Gray Steel, IP55
  • MPN: CTD24488
  • UPC: 783510294427
  • PPN: HOF-CTD24488
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1622.92/ EA

Description

Concept two door enclosures offer full-width access for machine control applications. This Concept Two-Door Enclosure, CTD24488 item measures 24.00x48.00x8.00 inches with a material of Steel colored Gray.

Features

  • Seams continuously welded and ground smooth
  • Corner-formed doors
  • Simple easy-to-remove and install hinge pins with built-in captivation clip
  • High-torque threadless studs and fasteners on door
  • Minimum-width body flange provides maximum door opening (210 degrees)
  • Door opens 210 degrees
  • External formed body flange
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for optional external wall-mount brackets
  • Removable door with hidden hinges for clean, aesthetic appearance
  • Seamless foam-in-place gasket
  • Quarter-turn slotted latch(es)
  • Door alignment device on doors wider than 30 in.
  • Four hinges on 60in.-high enclosures
  • Grounding stud on body; bonding provision on door
  • Provisions on door for optional high-impact thermoplastic data pocket
  • Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
  • Installation instructions provided
  • Overlapping door design that provides full-width access
  • Three-point latch system on right-hand hinged door furnished with flush slotted insert

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
1,219
Protection Rating
NEMA Type 12
Finish
Powder Coated
Body Thickness
1.9
Mounting (G x H)
572 x 1181
Weight
85
Material
Steel
Color
Gray
Height (H)610
Depth (D)203
Product FamilyConcept
Color CodeANSI 61
Door Thickness1.9
IP RatingIP55
Sub BrandConcept
Size24.00x48.00x8.00 in
NEMA Rating12 Indoor, dust-resistant
