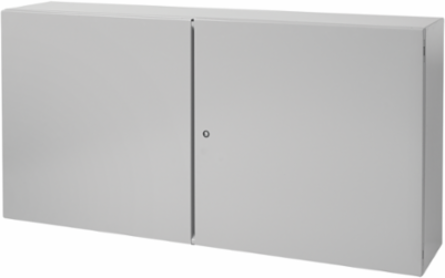

nVent Hoffman CTD364216 Concept Two-Door Enclosure 36x42x16 Inch, Gray, Steel, NEMA Type 12, Weight 152 lbs

Concept Two-Door Enclosure 36x42x16 Inch, Gray, Steel, NEMA Type 12, Weight 152 lbs
  • MPN: CTD364216
  • UPC: 783510294465
  • PPN: HOF-CTD364216
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2322.92/ EA

Description

Concept two door enclosures offer full-width access for machine control applications. This Concept Two-Door Enclosure, CTD364216 item measures 36.00x42.00x16.00 inches with a material of Steel colored Gray.

Features

  • Seams continuously welded and ground smooth
  • Corner-formed doors
  • Simple easy-to-remove and install hinge pins with built-in captivation clip
  • High-torque threadless studs and fasteners on door
  • Minimum-width body flange provides maximum door opening (210 degrees)
  • Door opens 210 degrees
  • External formed body flange
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for optional external wall-mount brackets
  • Removable door with hidden hinges for clean, aesthetic appearance
  • Seamless foam-in-place gasket
  • Quarter-turn slotted latch(es)
  • Door alignment device on doors wider than 30 in.
  • Four hinges on 60in.-high enclosures
  • Grounding stud on body; bonding provision on door
  • Provisions on door for optional high-impact thermoplastic data pocket
  • Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
  • Installation instructions provided
  • Overlapping door design that provides full-width access
  • Three-point latch system on right-hand hinged door furnished with flush slotted insert

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
1,067
Protection Rating
NEMA Type 12
Finish
Powder Coated
Body Thickness
1.9
NEMA Rating
12 Indoor, dust-resistant
IP Rating
IP55
Sub Brand
Concept
Size
36.00x42.00x16.00 in
Height (H)914
Depth (D)406
Product FamilyConcept
Color CodeANSI 61
Door Thickness1.9
Mounting (G x H)876 x 1029
Weight152
MaterialSteel
ColorGray
