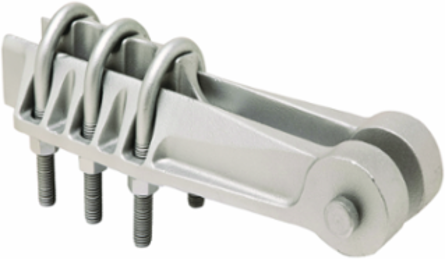

Burndy DUW46 Copper Deadend Strain Clamp 1000-1500 kcmil, 11.59 Inch Length, 3.91 Inch Width
- MPN: DUW46
- UPC: 781810013410
- PPN: BUR-131017
CAD
$1002.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Deadend Strain Clamp, 1000 - 1500 kcmil Cu
Documentation & Downloads
Specifications

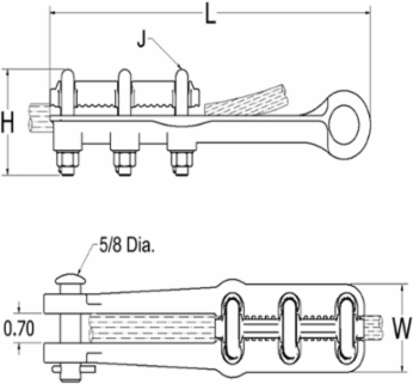

Dimensions
| Dimension - B Length fraction | 5-14/25 in |
|---|---|
| Dimension - Height fraction | 3-33/50 in |
| Dimension - L Length Overall mm | 294 mm |
| Dimension - Width fraction | 3-81/89 in |
| Dimension - Width mm | 99 mm |
| Dimension - B Length inch | 5.56 in |
|---|---|
| Dimension - Height inch | 3.66 in |
| Dimension - Length Overall inch | 11.59 in |
| Dimension - Width inch | 3.91 in |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | No |
Conductor Related
| Conductor - Copper Str Size | 1000 kcmil;1250 kcmil;1300 kcmil;1500 kcmil |
|---|
| Conductor - Copper Str Size Range | 1000 kcmil-1500 kcmil |
|---|
General
| Connector Type | Deadend |
|---|---|
| Material - Hardware | Galvanized Steel |
| Plating Type | Bright Dipped |
| Material | Copper Alloy |
|---|---|
| Plated | Y |
| UPC | 781810013410 |
Logistics
| Minimum Pack Quantity | 1 |
|---|
