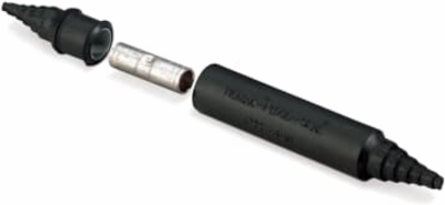

Homac ULCK 250 CU FLOODSEAL INLINE COMP SPLICE 250
- MPN: ULCK 250
- UPC: 075114387293
- PPN: T-B-ULCK 250
- UNSPSC: 39121449
CAD
$46.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Copper Tin-Plated Straight Splices - standard barrel, wire size 250 KCMIL Copper. Dies 11/16, 16, TR, 60, 166. with Flood Seal Rocket and Cap, Silicone Grease and Instruction Sheet. UL and CSA listed Splice. Splice 2-1/4 inch long.
Features
- Prefilled with Oxide Inhibitor and topped with color-coded end caps. Prevents oxidation and keeps out moisture. Solid Center Stops. Easy cable insertion. All splices are marked with installation die codes and compression locations for easy identificaton and installation. Tough Stabilized Nylon Sleeves Resist Installing-tool Pressure and Provide Reliable 600V insulation
Specifications
Key Specifications
| Brand Name | Homac |
|---|---|
| Size | Splice 2-1/4 inch long |
| Connection | Compression |
| Finish | Tin-Plated |
| Insulation | Flood Seal Rocket and Cap |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
| IGCC | 4669 |
| Standard | UL and CSA listed |
|---|---|
| Conductor Range | 250 kcmil |
| Number Of Conductors | 2 |
| Material | Copper |
| Country of Origin | United States |
| Buy American Act (BAA) Compliant | Contact Manufacturer |
