Homac L 8-38 CU TP 1HOLE LUG WIRE 8 BOLT 3/8
Homac L 8-38 CU TP 1HOLE LUG WIRE 8 BOLT 3/8
- MPN: L 8-38
- UPC: 783786739530
- PPN: T-B-L 8-38
- UNSPSC: 39121409
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$53.01/ EA
Description

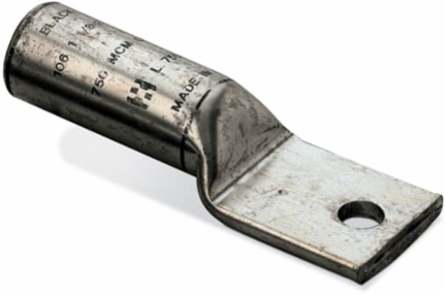

Tin Plated Copper One-Hole Straight NEMA Lugs. wire size # 8 Stranded CU. Installing Dies 21, 236, 171. Length 2 inch. Pad 41/64 inch wide x 3/4 inch long x 1/32 inch thick. (1) 13/32 inch hole. Barrel 15/16 inch. CSA. UL listed.
Specifications
Additional Information
- Application
- General Applications
- Connection Type
- Compression
- Product Name
- ELECTRICAL TERMINAL<1000V
- Size
- 1-15/16 inch X 5/8 inch wide
- Standards
- UL E9809. CSA LR35518.
- Wire Size
- #8 AWG
Brand / LabelHomac
Effective Date20080619
Product TypeCompression Lug One Hole
Special FunctionsTin-Plated to resist corrosion. Produced from seamless electrolytic copper tubing which provides high conductivity and minimizes voltage drop. Marked with a catalog number, conductor sizes and die references.
Surface FinishingTin Plated
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
