Bussmann

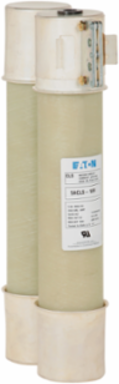

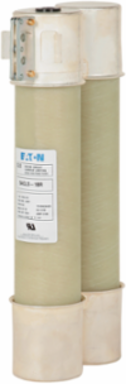

Bussmann 5CLS-2R Current Limiting Fuse, 70A, 4.8kV, 15.9 Inch Length, Class R

Current Limiting Fuse, 70A, 4.8kV, 15.9 Inch Length, Class R
Current Limiting Fuse, 70A, 4.8kV, 15.9 Inch Length, Class R
Current Limiting Fuse, 70A, 4.8kV, 15.9 Inch Length, Class R
  • MPN: 5CLS-2R
  • UPC: 786670150367
  • PPN: BUS-5CLS-2R

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1437.92/ EA

Description

Current Limiting Fuse, 70A, 4.8kV, 15.9 Inch Length, Class R

Specifications

Specifications

Height
3 IN
Width
3 IN
Type
Motor start
Voltage Rating
4.8 kV
Interrupt Rating
50 kAIC
Diameter
3 IN
Clip Center
12
Series
CLS
Length15.9 IN
Weight.001 LB
Special FeaturesSingle barrel, 2R designation
Amperage Rating70A
ClassClass R
BarrelsSingle barrel
Maximum Voltage5.5 kV
NotesConsult factory for mountings.
