Bussman

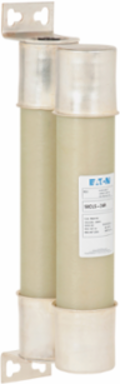

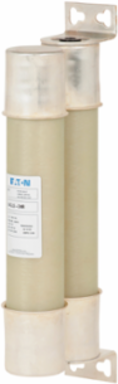

Bussman 4BCLS-26R Current Limiting Fuse, 480A Amperage, 2.4 kV Voltage, 3 Inch Diameter

Current Limiting Fuse, 480A Amperage, 2.4 kV Voltage, 3 Inch Diameter
Current Limiting Fuse, 480A Amperage, 2.4 kV Voltage, 3 Inch Diameter
Current Limiting Fuse, 480A Amperage, 2.4 kV Voltage, 3 Inch Diameter
  • MPN: 4BCLS-26R
  • UPC: 782114893739
  • PPN: BUS-4BCLS-26R

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Specifications

Specifications

Height
3 IN
Width
3 IN
Type
Motor start
Voltage Rating
2.4 kV
Interrupt Rating
50 kAIC
Mounting
Bolt-in
Barrels
Single barrel
Maximum Voltage
4.3 kV
Notes
Consult factory for mountings.
Length15.9 IN
Weight.001 LB
Special FeaturesDouble barrel, 26R designation
Amperage Rating480A
ClassClass R
Diameter3 IN
Clip Center17.88
SeriesBCLS

Downloads
