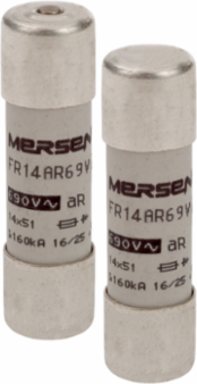

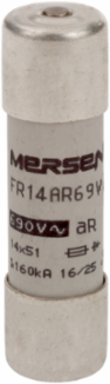

Mersen W1056662 Protistor 14x51 Cylindrical Fuse-Link, 690V, 25A, Ceramic Body, aR Speed
- MPN: W1056662
- PPN: FER-W1056662
CAD
$102.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These Protistor® size 14x51 have been designed to protect power semi conductors, complying with standard IEC 60269-4. They are extremely high interrupting rating fuses with large band of ratings (current rating 6 to 63A). Two models are existing: with or without striker.
Specifications
Key Specifications
- Rated voltage AC IEC
- 690 V
- ROHS Compliant
- Yes
- Speed/Characteristic
- aR
- Mounting
- Clip
- Melting I2t
- 45.3 A²s
- Indication System
- Yes
- Connection/Terminal Material
- Silver-Plated Copper
- Body/Insulating Material
- Ceramic
- Length
- 2.01 in
Ampere Rating25 A
AC or DCAC
Fuse Size14x51
Clearing I2t At Rated Voltage345 A²s
AC Max I.R./Breaking Capacity: I1160 kA
Indication System TypeStriker
Connection/Terminal TypeFerrule
Power Dissipation at Rated Current Value6 W
Weight0.044 lb
