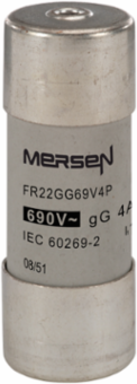

Mersen R214628 Cylindrical Fuse-Link gG 690V 22x58, 4A, Ceramic Body, Striker Version

MPN: R214628
PPN: FER-R214628

$108.91

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Mersen aM and gG fuse-links cover a wide range of physical sizes and ampere ratings for 400, 500, and 690VAC for protection in electrical distribution circuits and various industrial applications. Most ratings are available in size 8x31 and size 10x38 with an optional indicator, and in size 14x51 and 22x58 with an optional striker to activate an auxiliary contact. Size 10x38 is also available with striker. All cylindrical fuse-links have ceramic bodies and silver-plated contacts. Cylindrical fuse-links "gG" are used for the protection of cables, motors and LV-networks. They limit and cut off unacceptable overcurrents and short-circuit currents up to their nominal breaking capacity. Cylindrical fuse-links "gG" also protect electrical equipment and installations against the dynamic effect of high short-currents. Our technology and process was designed to ensure highly reliable technical performance.

Specifications

Key Specifications

Rated voltage AC IEC	690 V
Ampere Rating	4 A
AC or DC	AC/DC
Fuse Size	22x58
AC Max I.R./Breaking Capacity: I1	120 kA
Indication System	Yes
Connection/Terminal Material	Silver-Plated Copper
Body/Insulating Material	Ceramic
Length	2.28 in

Rated voltage DC IEC	250 V
ROHS Compliant	Yes
Speed/Characteristic	gG
Mounting	Clip
Max. Rated Breaking Capacity DC	100 kA @ 250 V, L/R = 15 ms
Indication System Type	Striker
Connection/Terminal Type	Ferrule
Power Dissipation at Rated Current Value	1.25 W
Weight	0.119 lb
