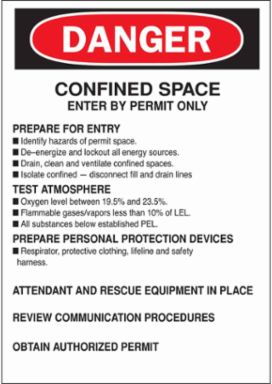

Brady 122649 DANGER Confined Space Sign, 10" H x 7" W x 0.006" D, Polyester
Brady 122649 DANGER Confined Space Sign, 10" H x 7" W x 0.006" D, Polyester
- MPN: 122649
- UPC: 754473716011
- PPN: BRD-122649
- UNSPSC: 55121704
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$23.11/ EA
Description
B-302 is an indoor/outdoor high performance pressure sensitive safety sign, and is surface printed polyester with a polyester overlaminate.
Features
- Weathers up to 8 years outdoors, even longer indoors, and withstands wide temperature variations (up to 230°F)
- Flexible material conforms to most surfaces while protected graphics hold up to harsh environments, abrasion, and repeated spills and cleanings
- Permanent, pressure sensitive adhesive forms a long-lasting bond to even the most difficult surfaces and shapes
- Cold temperature adhesive allows the signage to be applied at 0°F (-18°C)
Specifications
Specifications
- Brand Name
- Brady®
- Color
- Black/Red on White
- Enables Industry Compliance
- ANSI Z53.1-1967; ANSI Z535-2006; OSHA 1910.145
- Image or Text
- Text Only
- Meets Industry Standards - Signs
- ANSI Z53.1-1967
- Number of Printed Sides
- 1
- PSPA Photoluminescence Class
- Not Illuminated
- Shape
- Rectangle
- Adhesive Type
- Permanent Acrylic
- Illumination
- Not Illuminated
- Laminated
- Laminated
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant
- Depth (in/ft/yd)
- 0.006 in
- Dimensions
- 7 in H x 10 in W x 0.006 in D
- Dimensions 2
- 7 in H x 10 in W
- Height (mm/cm/m)
- 177.8 mm
- Maximum Service Temperature °F
- 230 °F
- Minimum Application Temperature °F
- 0 °F
- Minimum Service Temperature °F
- -40 °F
- Sign Size-General
- 7 in x 10 in
- Thickness (mm/cm/m)
- 0.254 mm
- Width (mm/cm/m)
- 25.4 cm
Calculated Sign ShapeHorizontal Rectangle
Compatible Surface TypesCold; High Surface Energy
HeaderDANGER
LanguageEnglish
Mounting TypeSelf-Adhesive
Primary Noun, Basic FunctionSign
Reflective TypeNon-Reflective
Text LegendCONFINED SPACE ENTER BY PERMIT ONLY PREPARE FOR ENTER BY PERMIT ONLY PREPARE FOR ENTRY IDENTIFY HAZARDS OF PERMIT SPACE. DE-ENERGIZE AND LOCKOUT ALL ENERGY SOURCES. DRAIN, CLEAN AND VENTILATE CONFINED SPACES. ISOLATE CONFINED-DISCONNECT FILL AND DRAIN LINES TEST ATMOSPHERE OXYGEN LEVEL BETWEEN 19.5% AND 23.5%. FLAMMABLE GLASS/VAPORS LESS THAN 10% ID LEL. ALL SUBSTANCES BELOW ESTABLISHED PEL. PREPARE PERSONAL PROTECTION DEVICES RESPIRATOR, PROTECTIVE CLOTHING, LIFELINE AND SAFETY HARNESS. ATTENDANT AND RESCUE EQUIPMENT IN PLACE REVIEW COMMUNICATION PROCEDURES OBTAIN AUTHORIZED PERMIT
Brady Material NumberB-302
Indoor or Outdoor UseOutdoor Use
MaterialPolyester with Polyester Overlaminate
SAP B-NumberB-302
Depth (mm/cm/m)0.15 mm
Dimensions (Metric)177.8 mm H x 0.15 mm D
Height (in/ft/yd)7 in
Maximum Service Temperature °C110 °C
Minimum Application Temperature °C-18 °C
Minimum Service Temperature °C-40 °C
Sign Size7 in H x 10 in W x 0.006 in D
Thickness (in/ft/yd)0.01 in
Width (in/ft/yd)10 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
