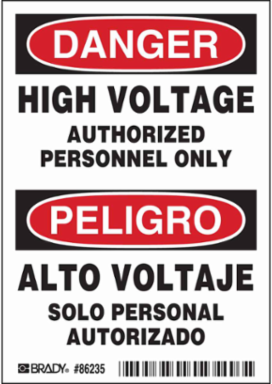

Brady 86235 DANGER/PELIGRO HIGH VOLTAGE AUTHORIZED PERSONNEL ONLY/ALTO VOLTAJE Labels, 5" H x 3.5" W x 0.006" D, Black/Red on White
Brady 86235 DANGER/PELIGRO HIGH VOLTAGE AUTHORIZED PERSONNEL ONLY/ALTO VOLTAJE Labels, 5" H x 3.5" W x 0.006" D, Black/Red on White
- MPN: 86235
- UPC: 754473862350
- PPN: BRD-86235
- UNSPSC: 55121606
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$25.98/ EA
Description
B-302 is an indoor/outdoor high performance pressure sensitive safety sign, and is surface printed polyester with a polyester overlaminate.
Features
- Weathers up to 8 years outdoors, even longer indoors, and withstands wide temperature variations (up to 230°F)
- Flexible material conforms to most surfaces while protected graphics hold up to harsh environments, abrasion, and repeated spills and cleanings
- Permanent, pressure sensitive adhesive forms a long-lasting bond to even the most difficult surfaces and shapes
- Cold temperature adhesive allows the signage to be applied at 0°F (-18°C)
Specifications
Specifications
- Brand Name
- Brady®
- Color
- Black/Red on White
- Enables Industry Compliance
- ANSI Z53.1-1967; ANSI Z535-2006; OSHA 1910.145
- Image or Text
- Text Only
- Mounting Type
- Self-Adhesive
- Primary Noun, Basic Function
- Label
- PSPA Photoluminescence Class
- Not Illuminated
- Shape
- Rectangle
- Adhesive Type
- Permanent Acrylic
- Illumination
- Not Illuminated
- Label Properties
- Permanent Adhesive Labels
- Material
- Polyester with Polyester Overlaminate
- SAP B-Number
- B-302
- Dimensions (Metric)
- 127 mm H
- Height (in/ft/yd)
- 5 in
- Maximum Service Temperature °C
- 110 °C
- Minimum Application Temperature °C
- -18 °C
- Minimum Service Temperature °C
- -40 °C
- Sign Size
- 5 in H x 3.5 in W
- Thickness (in/ft/yd)
- 0.01 in
- Width (in/ft/yd)
- 3.5 in
Calculated Sign ShapeVertical Rectangle
Compatible Surface TypesCold; High Surface Energy
HeaderDANGER/PELIGRO
LanguageEnglish; Spanish
Number of Printed Sides1
Printer and Label ApplicationsGeneral Identification; Safety
Reflective TypeNon-Reflective
Text LegendHIGH VOLTAGE AUTHORIZED PERSONNEL ONLY/ALTO VOLTAJE
Brady Material NumberB-302
Indoor or Outdoor UseOutdoor Use
LaminatedLaminated
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant
Dimensions5 in H x 3.5 in W
Dimensions 25 in H x 3.5 in W
Height (mm/cm/m)127 mm
Maximum Service Temperature °F230 °F
Minimum Application Temperature °F0 °F
Minimum Service Temperature °F-40 °F
Sign Size-General5 in x 3.5 in
Thickness (mm/cm/m)0.254 mm
Width (mm/cm/m)88.9 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
