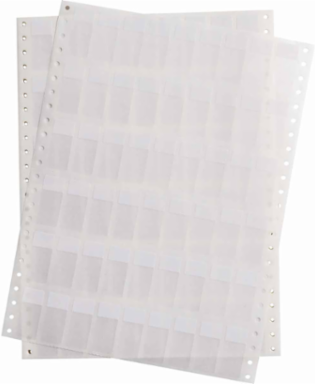

Brady DAT-36-292-1 DATAB Series Self-Laminating Vinyl Labels, 1.750" H x 0.75" W, Pack of 1000 Labels
- MPN: DAT-36-292-1
- UPC: 662820284352
- PPN: BRD-DAT-36-292-1
- UNSPSC: 55121612
CAD
$284.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Self-Laminating Vinyl (B-292) is a matte vinyl with a clear overlaminate to protect graphics against oil, water, and mild solvents.
Features
- Vinyl labels feature clear "trailer" that wraps to protect printed text
- Flexible, self-extinguishing material conforms to most surfaces
- Operating temperature of -40°F to 150°F (-40°C to 65.5°C)
- RoHS Compliant;and UL Recognized when printed with Brady Series R2000, R5000, and R7300 ribbons
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- Clear/White
- Enables Industry Compliance
- ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
- For Use with Printer
- Dot Matrix Printers
- National Stock Number (NSN)
- 7690013742215
- Print Technology
- Dot Matrix
- Printer Compatibility
- Dot Matrix
- Quantity per Row
- 9
- Shape
- Rectangle
- Total Qty per Pack
- 1000 Label(s) / Pack
- Trade Name
- DATAB®
- Brady Material Number
- B-292
- Label Properties
- Self Laminating Labels & Wraps
- Material Properties
- Flame-retardant; Self-laminating
- Resistance Properties
- Chemical-Resistant; Humidity-Resistant; Oil-Resistant; Water-Resisitant; Weather-Resistant
- Dimensions
- 1.750 in H x 0.75 in W
- Dimensions 2
- 1.750 in H x 0.75 in W
- Height (mm/cm/m)
- 44.45 mm
- Horizontal Repeat (mm)
- 22.86 mm
- Maximum Service Temperature °C
- 70 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.40 in
- Minimum Service Temperature °C
- -40 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.2 in
- Printable Area Dimensions
- 0.5 in H x 0.75 in W
- Printable Area Height (in/ft/yd)
- 0.5 in
- Printable Area Width (in/ft/yd)
- 0.75 in
- Sign Size-General
- 1.750 in x 0.75 in
- Thickness (in/ft/yd)
- 0.004 in
- Vertical Repeat
- 2 in
- Web Width (in/ft/yd)
- 9 in
- Width (in/ft/yd)
- 0.75 in
- Wire Diameter Range
- 0.2 in to 0.40 in
Brand NameBrady®
Compatible Surface TypesGeneral
FinishMatte
Label/Media FormatRoll
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsWire & Cable
Quantity per Roll1000
Ribbon SeriesR2000; R5000
Suggested Ribbon SeriesR5000
Total Quantity1000
Adhesive TypePermanent Acrylic
Indoor or Outdoor UseOutdoor Use
MaterialSelf-laminating Vinyl
Overlaminate IncludedOverlaminate Included
SAP B-NumberB-292
Dimensions (Metric)19.05 mm W x 44.45 mm H
Height (in/ft/yd)1.750 in
Horizontal Repeat0.9 in
Label/Tape Size (in/ft/yd)1.750 in H x 0.75 in W
Maximum Service Temperature °F158 °F
Maximum Wire Diameter (mm/cm/m)10.16 mm
Minimum Service Temperature °F-40 °F
Minimum Wire Diameter (mm/cm/m)5.08 mm
Printable Area Dimensions (Metric)12.70 mm H x 19.05 mm W
Printable Area Height (mm/cm/m)12.70 mm
Printable Area Width (mm/cm/m)19.05 mm
Size - Width (mm)19.05 mm
Thickness (mm/cm/m)0.102 mm
Vertical Repeat (mm)50.80 mm
Web Width (mm/cm/m)228.60 mm
Width (mm/cm/m)19.05 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
