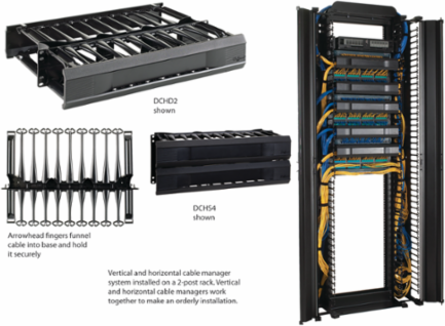

nVent Hoffman DCHD2 CableTek Horizontal Cable Manager 2U Double Sided, fits 19in, Black, Composite
nVent Hoffman DCHD2 CableTek Horizontal Cable Manager 2U Double Sided, fits 19in, Black, Composite
- MPN: DCHD2
- UPC: 783510172435
- PPN: HOF-DCHD2
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$169.08/ EA
Description
CableTek Horizontal Cable Managers designed to easily route cable on 19in cabinets and open-frame racks. This CableTek Horizontal Cable Manager 2U Double Sided, DCHD2 item fits 19in with a material of Composite colored Black.
Features
- Snap-in mounting provision holds cable manager in place while mounting screws are installed
- Robust arrowhead fingers are shaped to funnel cables into base and are made of black composite material
- Robust rounded end posts support cable as it enters and leaves cable manager and maintains proper cable bend radius
- Deep cable compartments allow maximum cable density
- Rounded edges throughout protect cable jackets from damage
- Pass-through holes on double-sided models protect cable while facilitating routing between front and back sides
- Single- and double-sided units provide high cable capacity, including 5e, 6 and 6A cables
- 1 RU and 2 RU heights allow greater flexibility in optimizing rack capacity
- Removable hinged cover opens top or bottom, snaps closed for assured cable protection and professional appearance
- Double-sided model has covers on both front and back
- Covers stay open during installation and maintenance procedures
- Horizontal and vertical cable managers designed as a system for streamlined appearance and improved functionality
- Combination head 10-32 and 12-24 screws included for mounting
- Made of UL listed black composite material
Specifications
Specifications
- BABA
- Contact Manufacturer
- Material
- ABS
- Color
- Jet Black
- Back Cross-Section Area
- 14.1
- Fill Rate, Back Cable, Cat 6 ⌀ 0.25 in
- 172
- Rack Units
- 2
- Fill Rate, Front Cable, Cat 5e ⌀ 0.22 in
- 208
- Fill Rate, Front Cable, Cat 6A ⌀ 0.30 in
- 112
Product FamilyCableTek
FinishSmooth Matte
Color CodeRAL 9005
Fill Rate, Back Cable, Cat 5e ⌀ 0.22 in223
Fill Rate, Back Cable, Cat 6A ⌀ 0.30 in119
Front Cross-Section Area13.2
Fill Rate, Front Cable, Cat 6 ⌀ 0.25 in161
Weight4
