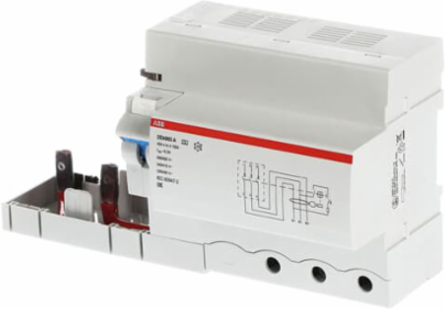

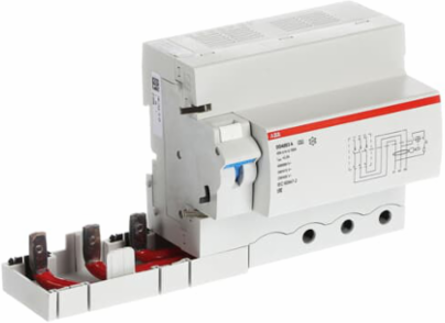

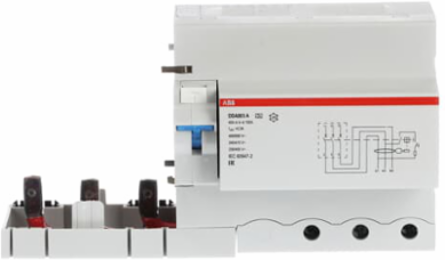

ABB 2CSB803101R3000 DDA803 A-100/0.3 Residual Current Device Block
- MPN: 2CSB803101R3000
- UPC: 888614269637
- PPN: ABB-2CSB803101R3000
CAD
$987.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The RCD Block DDA800 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is suitable for assembly with MCBs S800 series up to 100A.
Specifications
Installation
| Instructions and Manuals | 2CSB427001D0003 |
|---|
Dimensions
| Width in Number of Modular Spacings | 6.5 |
|---|---|
| Product Net Height | 108.2 mm |
| Product Net Weight | 0.400 kg |
| Product Net Width | 117 mm |
|---|---|
| Product Net Depth / Length | 82.3 mm |
Technical
| Standards | IEC EN 60947-2 Ann. B |
|---|---|
| Suitable For | S800SS800NS800CS800B |
| Rated Operational Voltage | 400/690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Residual Current | 300 mA |
| Leakage Current Type | A |
| Power Loss | 10.5 W |
| Operating Characteristic | Instantaneous |
| Type of Residual Current | A type |
|---|---|
| Rated Voltage (Ur) | 400 V AC415 V AC690 V AC |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Current (In) | 100 A |
| Maximum Surge Current | 0.25 kA |
| Rated Frequency (f) | 50 … 60 Hz |
| Number of Poles | 3 |
| Connecting Capacity | Rigid 6 … 50 mm²Flexible 6 … 70 mm² |
Classifications
| ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module |
|---|---|
| WEEE B2C / B2B | Business To Business |
| eClass | V11.0 : 27142210 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
|---|---|
| CN8 | 85363030 |
| Object Classification Code | F |
Environmental
| Ambient Temperature | -25...60 °C |
|---|---|
| Degree of Protection | IP2X |
| RoHS Information | 9AKK106713A5616 |
| Environmental Information | refer to RoHS information |
| Ambient Air Temperature | Operation -25...60 °C |
|---|---|
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108467A9482 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
Technical UL/CSA
| Short-Circuit Current Rating (SCCR) | 0.3 ... 0.3 A |
|---|
Ordering
| Minimum Order Quantity | 1 piece |
|---|---|
| Package Level 1 Gross Weight | 0.5 kg |
| Package Level 1 Units | box 1 piece |
|---|
