Thomas & Betts K150-DR DEADBREAK INSULATED CAP
- MPN: K150-DR
- UPC: 783786632251
- PPN: T-B-K150-DR
- UNSPSC: 26121630
CAD
$192.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

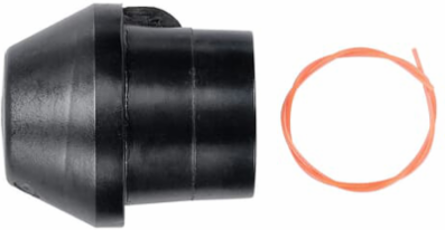

15/25kV 200 Amp, Deadbreak Insulated Cap. Bails are required, but not included, order separately. Does include a Nylon Vending Rod.
Specifications
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
Additional Information
| Application | Fully shielded, fully submersible insulating plug designed for de-energized operation. It is suitable for use on 15kV and 25kV class systems. |
|---|---|
| Effective Date | 19980115 |
| Product Name | PRIMARY CABLE ACC. 200 SEP CON |
| Size | 3.13 inches (79.4 mm) long, 2.81 inch (71.4 mm) Diameter |
| Standards | ANSI/IEEE 386 |
| Brand / Label | Elastimold |
|---|---|
| Material | EPDM Rubber |
| Product Type | Insulated Cap |
| Special Functions | 15/25kV, 200 Amp Deadbreak Rated. Fits standard Elastimold deadbreak bushings. Peroxide-cured insulation and jacket. Provides Dead-End for circuit. Fully shielded, fully submersible. |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
