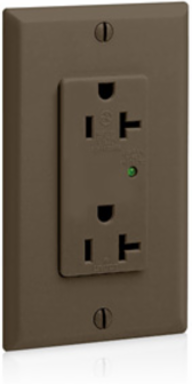

Leviton 5380 Decora Plus 20 Amp 125 Volt Surge Protective Duplex Receptacle, Commercial Grade
Leviton 5380 Decora Plus 20 Amp 125 Volt Surge Protective Duplex Receptacle, Commercial Grade
- MPN: 5380
- UPC: 078477009208
- PPN: LEV-5380
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$131.57/ EA
Description
Decora Plus Surge Protective Duplex Receptacle Outlet, Commercial Specification Grade, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire - Brown
Features
- Leviton’s Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton’s outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
Agency CertificationsUL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
NOM057
Performance Data
- Diagnostics
- Indicator Light
- MCOV
- 150V rms
- Noise Rejection
- -30dB at 500kHz-30MHz
- Short Circuit Current Rating
- 5kA
Joules Rating720
Maximum Surge Current, Per Mode (Per Phase)27kA (L-N:18kA, L-G:9kA)
Nominal Discharge Current Rating3kA
VPRL-N: 600V, L-G: 700V, N-G: 600V
Material Specifications
- Body Material
- Thermoplastic Nylon
- Face Material
- Thermoplastic Nylon
- Line Contacts
- Brass Triple-Wipe
- Terminal Screws
- Brass-Plated Steel
Clamp NutsZinc-Plated Steel
Grounding ScrewBrass-Plated Steel
Shutter MechanismDelrin® Acetal
YokeZinc-Plated Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Torque Range14-16 inch pounds
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Brand
- Decora Plus
- Device Type
- Duplex Receptacle Outlet
- Grade
- Commercial Specification Grade
ColorBrown
FunctionSurge Protective
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Current LimitingFull Rated Current
Pole2
Voltage125 VAC
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
