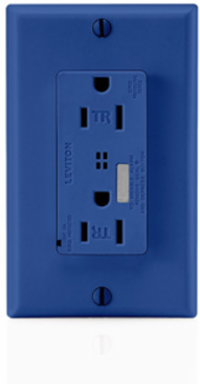

Leviton T7280-B Decora Plus 15 Amp 125 Volt Surge Protective Duplex Receptacle, Commercial Grade
- MPN: T7280-B
- UPC: 078477434444
- PPN: LEV-T7280-B
CAD
$128.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Leviton’s Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton’s outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
Documentation & Downloads
Specifications
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| Agency Certifications | UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3 |
|---|---|
| NOM | 057 |
Performance Data
| Noise Rejection | -30dB at 500kHz-30MHz |
|---|---|
| VPR | L-N: 600V, L-G: 700V, N-G: 600V |
| Short Circuit Current Rating | 5kA |
| Joules Rating | 720 |
| Nominal Discharge Current Rating | 3kA |
|---|---|
| Diagnostics | Indicator Light & Audible Alarm |
| Maximum Surge Current, Per Mode (Per Phase) | 27kA (L-N:18kA, L-G:9kA) |
| MCOV | 150V rms |
Material Specifications
| Ground Clips | Brass-Plated Steel |
|---|---|
| Face Material | Nylon |
| Shutter Mechanism | Delrin® Acetal |
| Body Material | Polycarbonate |
| Clamp Nuts | Zinc-Plated Steel |
| Line Contacts | Brass Triple-Wipe |
|---|---|
| Terminal Screws | Brass-Plated Steel |
| Grounding Screw | Brass-Plated Steel |
| Yoke | Zinc-Plated Steel |
Mechanical Specifications
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
|---|---|
| Terminal Accom. | 14-10 AWG |
| Termination | Back or Side Wire |
| Product ID | Ratings are permanently marked on device |
|---|---|
| Torque Range | 14-16 inch pounds |
Product Features
| Function | Surge Protective |
|---|---|
| Color | Blue |
| Country Of Origin | Mexico |
| Device Type | Duplex Receptacle Outlet |
| NEMA | 5-15R |
|---|---|
| Brand | Decora Plus |
| Feature | Tamper-Resistant |
| Grade | Commercial Specification Grade |
Warranty
| Warranty | 5-Year Limited |
|---|
Environmental Specifications
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 125 VAC |
| Wire | 3 |
|---|---|
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Current Limiting | Full Rated Current |
| Grounding | Self-Grounding |
