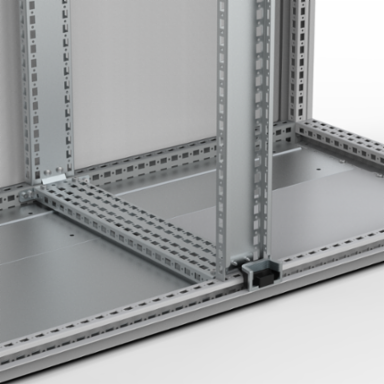

nVent Hoffman VBD600 Depth Dividing Bar 24 Inch x 600 Inch x 90 mm, Zinc Plated Steel
- MPN: VBD600
- UPC: 783510532215
- PPN: HOF-VBD600
CAD
$288.62
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The dividing bar increases the mounting possibilities within the enclosure and divides it into two useable spaces. VBD, VBD600 24x500x90mm has a material of Steel color Unpainted, finish Zinc Plated.
Features
- Description: Fitted in the centre of a 1200 mm or 1600 mm wide enclosure (top and bottom), to provide standard mounting facilities in two sections of 600 mm or 800 mm wide. This enables separate fitting of accessories such as CAB(P), CBU, CLPK, CLPF etc., in either side of the enclosure. Accessories are adjustable in depth within the 25 mm hole pattern.
- Material: 1.75 mm zinc plated steel.
- Pack quantity: 1 pair without mounting accessories.
- Mounting requirements: Add VBK for mounting. Add VB for complete mounting facilities in the division.
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 600 |
| Works With | IEC |
| Material | Steel |
| Thickness (T) | 1.75 |
| Height (H) | 24 |
|---|---|
| Depth (D) | 90 |
| Product Family | Free-Standing |
| Finish | Zinc Plated |
| Enclosure Material | Mild Steel |
